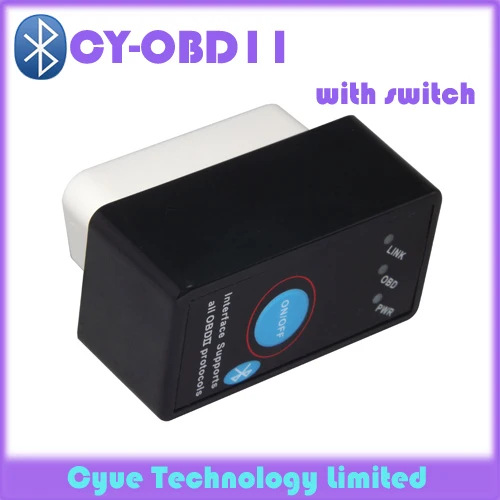

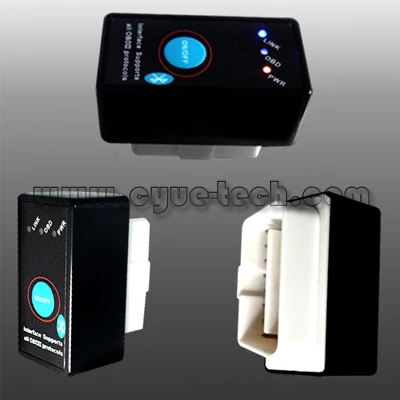

Product Name: CY-OBD11, Engine Data Logger, OBD 2 diagnostic scan tool & trouble code reader, ELM327 Bluetooth Dongle, with power switch, supper mini type, for Android smart phone

Benefit of the power switch:

1, To help you to save fuel.

2, To avoid interference between communication equipments.

There is a button with the OBD diagnostic tools and you can stop the OBD diagnostic tools when it is not necessary.

Description:

This ELM327 support TORQUE software for Android system cell phone, OBDscope software for Symbian system cell phone, PPC (Windows Mobile) system cell phone, ScanMaster-ELM for PC etc.

Applications:
1, To scan Diagnostic Trouble Code (DTC).
2, To extinguish the Check Engine light.
3, To help you to buy a used vehicles without trouble.
4. To help you to form good driving habits.
5. You are able to see the below data via the scan tool:
A, Real time data of the electronic control system like Engine RPM,Coolant Temperature, Vehicle speed, signal of the oxygen sensor, etc.
B, The function and status of the OBD system itself, like No. of the trouble and the status of MIL.
C, Partial detail result and contrast threshold of the OBD diagnosis.
D, Vehicles and marking information of the current data version.

Compatibility:
Windows XP, Vista, Windows7 32-Bit & 64-Bit, OSX Operating Systems. PC with Easy OBD-II, ScanMaster ELM, wOBD Crazy and so on. Handheld equipments (suggested Android Smart phones) with OS, Android, Symbian, WINDOWS MB etc.

Compatible car models: the OBD device can work with most modern cars after 1996 which is equipped with the below protocols: ISO15765-4/SAE J2480 (CAN BUS), ISO14230-4(KWP2000), ISO9141-2.

Important Notice: Generally, our obd2 trouble code reader is universal and they support all OBD-II protocols, but in order to make sure the diagnostic tool can be used with your car, please make sure your car is after 1996 and it is with one of the above protocols. For example, our diagnostic tools are compatible with ISO15765-4/SAE J2480 (CAN BUS), ISO14230-4(KWP2000), ISO9141-2 and so on. Recent new vehicles are always with CAN, and most Asian and European manufacturers apply ISO 9141.

Recommended Apps: Android Torque (Cyue-tech Suggested)

Functions:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel Status
Vehicle speed
Intake Manifold pressure (MAF/MAP)
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltage /short term fuel trim
Fuel Pressure

Features:
1, Brand new
2, Manufacturer (factory) direct sale and favorable price
3, Fast delivery and shipping cost saved
4, With disc enclosed with software
5, Latest version and compact size
6, Whole sale is also available
7, Technical support is available

For your information:

For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.

Software Included:
For Andyiod:Torque+1.5.58+En

For Symbian-OBD Scope v1.21

For Window Mobile-palm-pc-pocket pc ScanMaster--ELM v2.1

-pc   PCMSCAN-pc   OBD2Spy   ELM327-V1.2-pc  EasyOBDII   wOBDCRAZY

We do not sell apps with the product, if you do not like the recommend app, you can download apps like TORQUE from internet (software online shop), and some of them are charged.

Package including:
1x CY-OBD11 scan tool (original pack with cardboard box, if it is sell in batch, default inner packing is plastic bag and please kindly let us know if you need to enclose with cardboard box inner packing.)
1x CD with software (pls let us know if you do not need CD)

Installation instruction:

1, The default Bluetooth pass word is 1234.

2, You have to install the ELM software program to your pc/laptop or phone before you use the device. There are many ELM sellers provide software programs (most of them are charged) or they can be downloaded for free from the internet (or online shop). You can search via you local search engine.

3, If you have question on software, please feel free to let us know.

4, Pls turn the car's ignition switch ON when you use the device but no need to start the engine.

5, Different software and apps may have different features, there is no related with the OBD device, just try to find the right selection and configuration from the real operation display.

6, If you have difficulty in installation, please kindly contact our sales to request installation instruction (English only).

Delivery:

1, We will arrange shipment within promised delivery time and will provide tracking number.
2.We always ship to worldwide but APO,FPO is excluded.
3.We do not arrange shipment at weekend and holidays.

Warranty:
1.We offer 12 months Warranty for defective items (excluding items damaged and or misused after receipt).
2.Defective items MUST BE reported and returned to us within the warranty period (and in the original packaging, if possible). You must include your ID, order number, brief description of defective problem in your return package. WE DO NOT REPAIR OR REPLACE ITEMS WITH AN EXPIRED WARRANTY.
3.Return shipping is to be paid by the Buyer.
4.We do not responsible for any custom duty or import tax.

Contact us: (Cyue Technology Limited)
We only process order and after sale question at working time: 9:00 a.m. to 6:00 p.m.(GMT +8) of Monday to Friday.

If you want to get more discounts for batch order, please contact us directly.

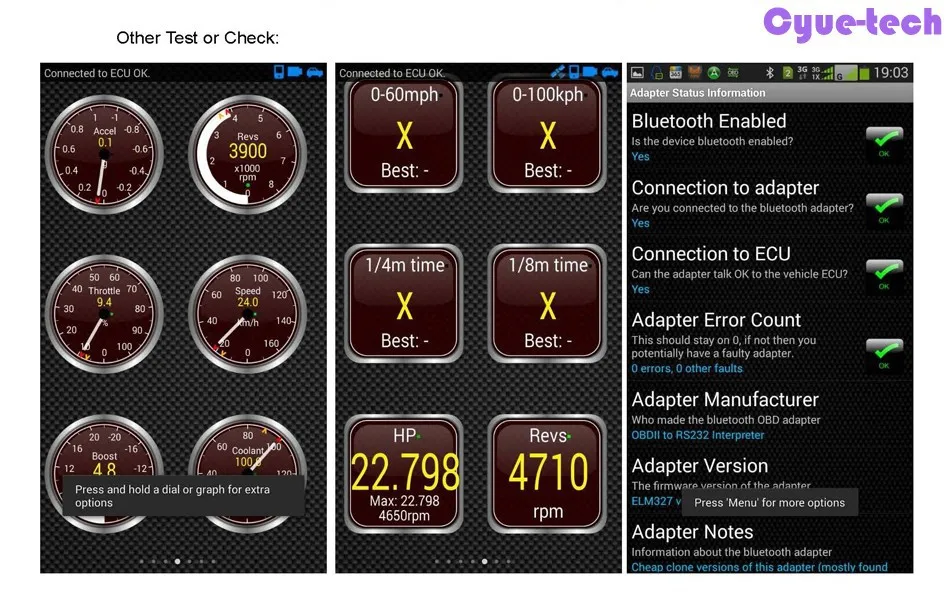

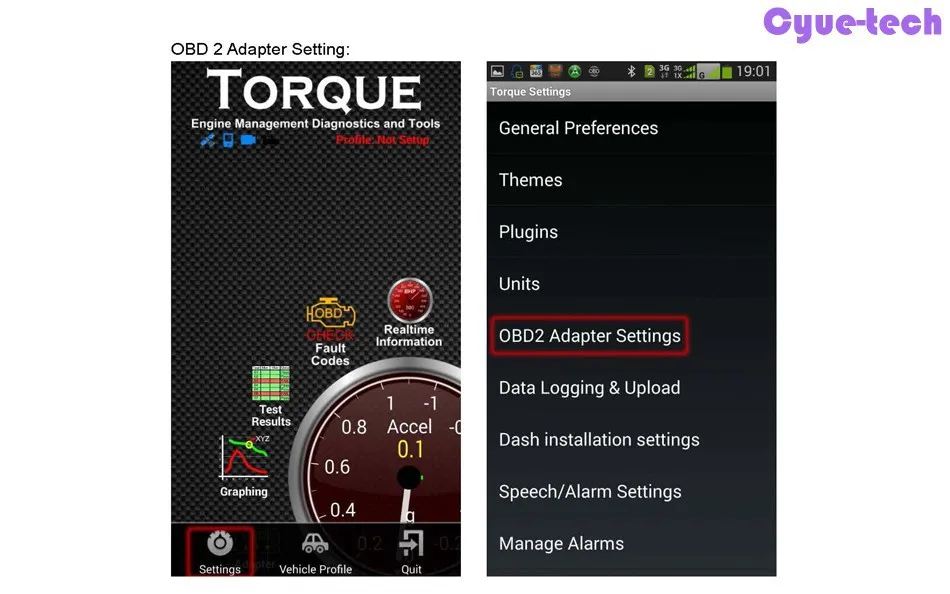

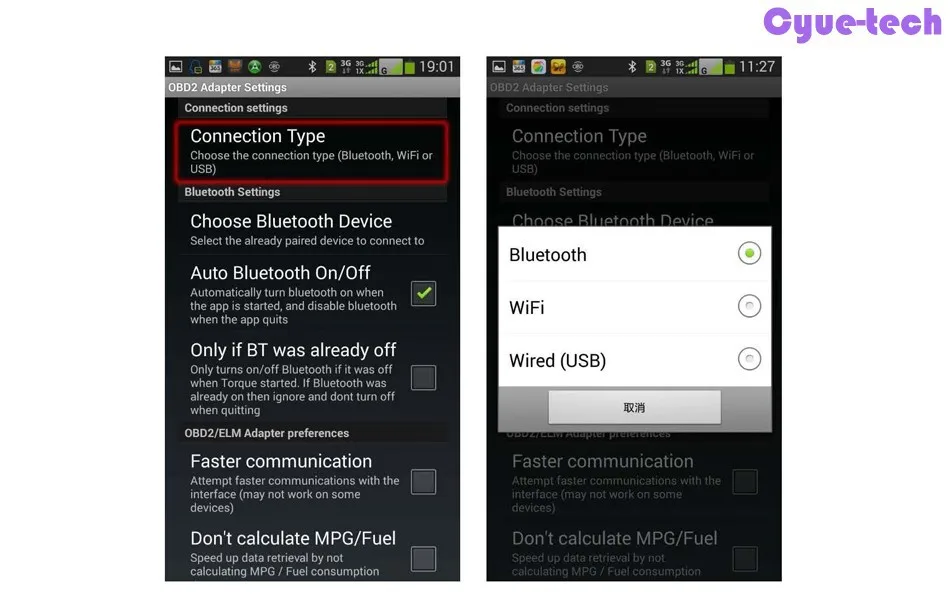

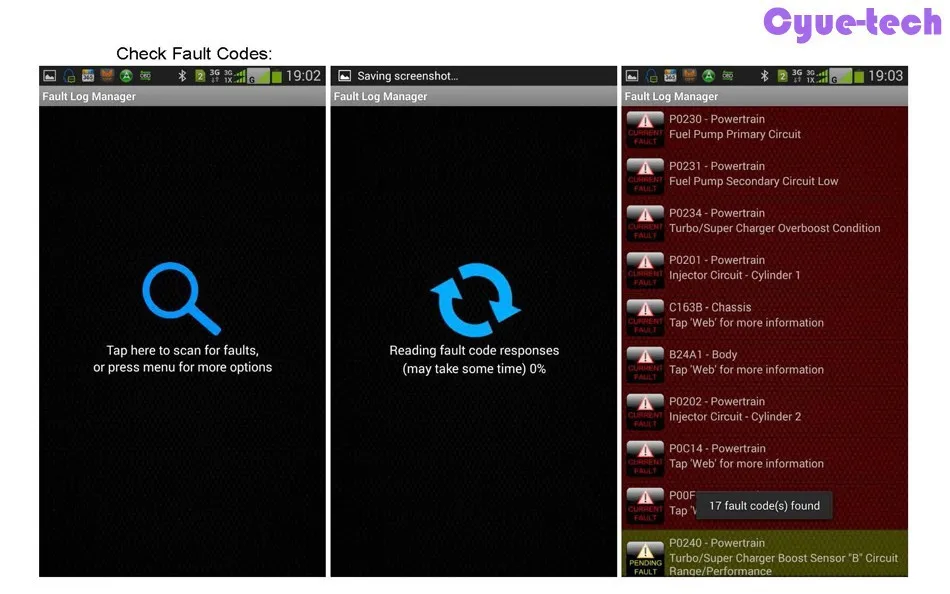

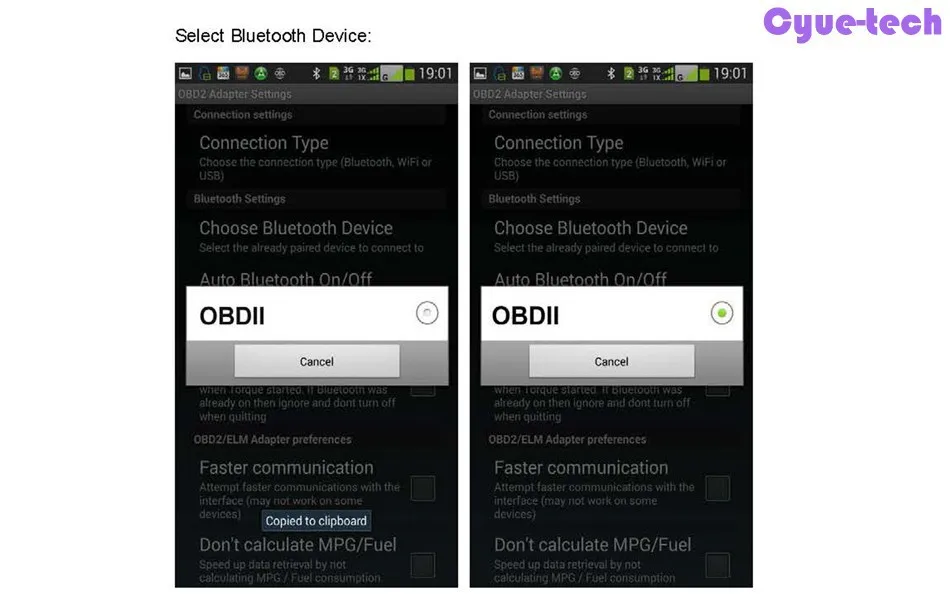

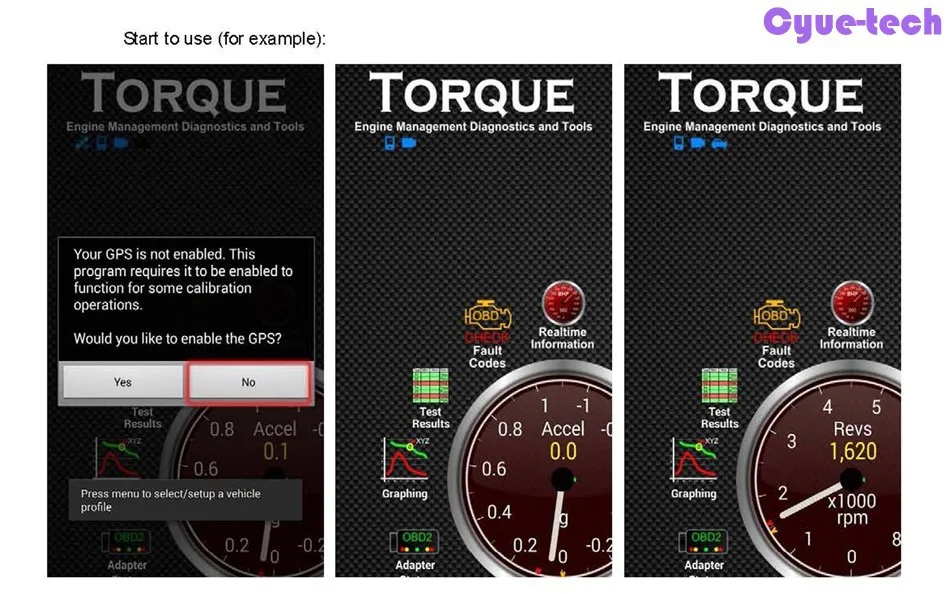

APP Presentation:
