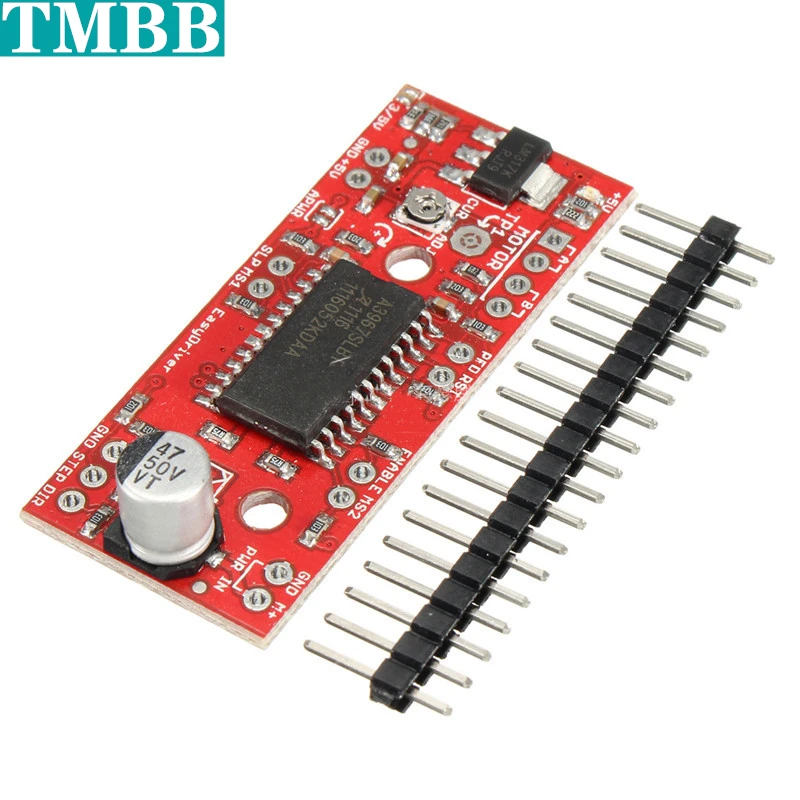

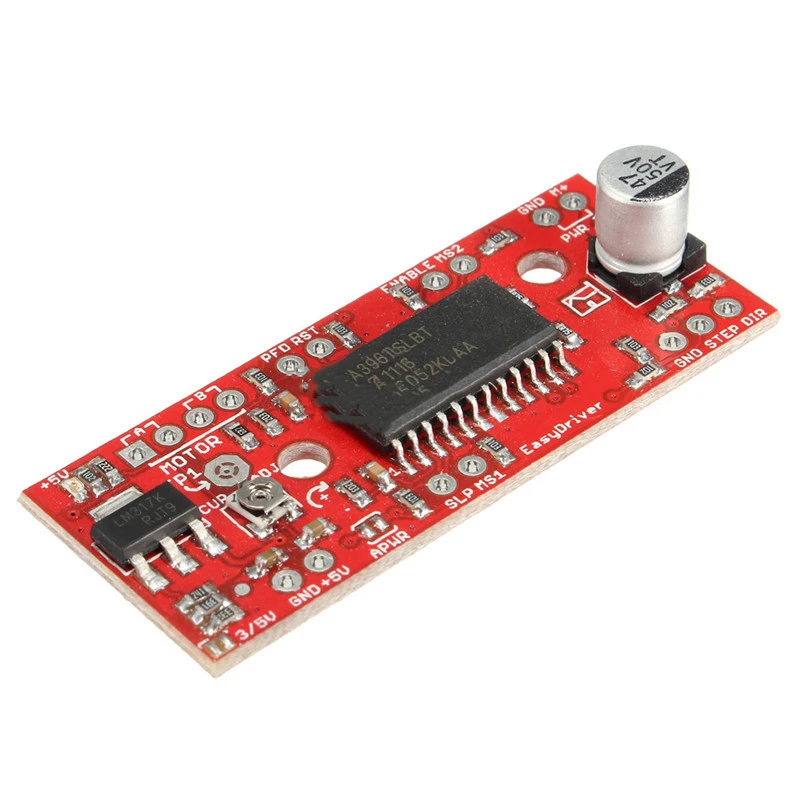

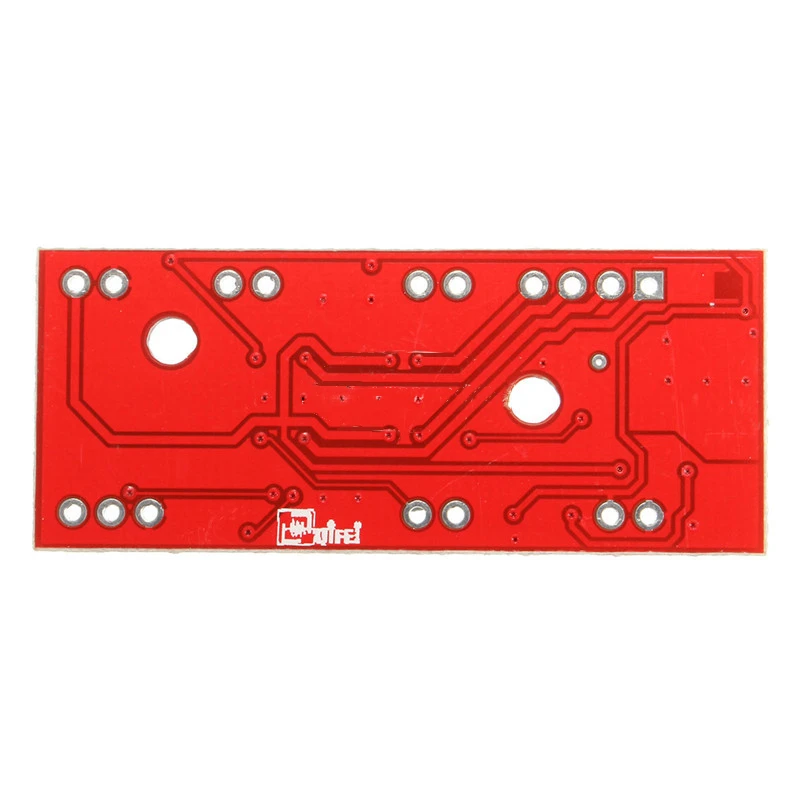

  EasyDriver Stepper Motor Driver Stepper Motor Driver Board   Driver chip: A3967 The MS1 and MS2 pins are used to control the subdivision (2, 4, 8) of the motor. The default is 8 subdivisions. 4-, 6-, 8-wire stepper motor compatible with any voltage Adjustable current control The 150MA-750MA can be adjusted via a potentiometer. The power input range is 7-30V. The higher the voltage, the higher the torque at high speed. The EasyDriver Stepper Motor Driver is the new Sparkfun imported stepper motor driver that is easy to use and can be used with any device that can output 0-5V (3V short circuit SJ2) pulse signal. EasyDriver powers the motor by plugging in 7-30V and can drive almost any stepper motor. EasyDriver's on-board voltage regulator chip can be set to 3.3V or 5V, can be directly connected to the 4-wire stepper motor, and precisely controls the action of the stepper motor through the microcontroller.   control:   · DIR -> 2 feet connected to Arduino   · STP -> 3 feet connected to Arduino   Power supply: GND power supply negative          M1 is the motor supply positive          GND power supply negative          5+ 5V chip power supply        A B is the output port connected to the stepper motor
