2019 best price 16 ports ZTE GTGH Gpon C++ board SFP Modules card for ZXA10 C320 C300 GPON OLT | Мобильные телефоны и

ZTE OLT GPON EPON corresponding service board series:

Model

Description

Apply to OLT model

dimension

GTGO  GPON business board

16ports contains 8pcs SFPs modules  C+

C300  C320

GTGH  GPON business board

16ports contains 16pcs SFPs modules  C+

ETGOD EPON  business board

16ports contains 8pcs SFPs modules  PX20+

ETGHDEPON  business board

16ports contains 16pcs SFPs modules PX20+

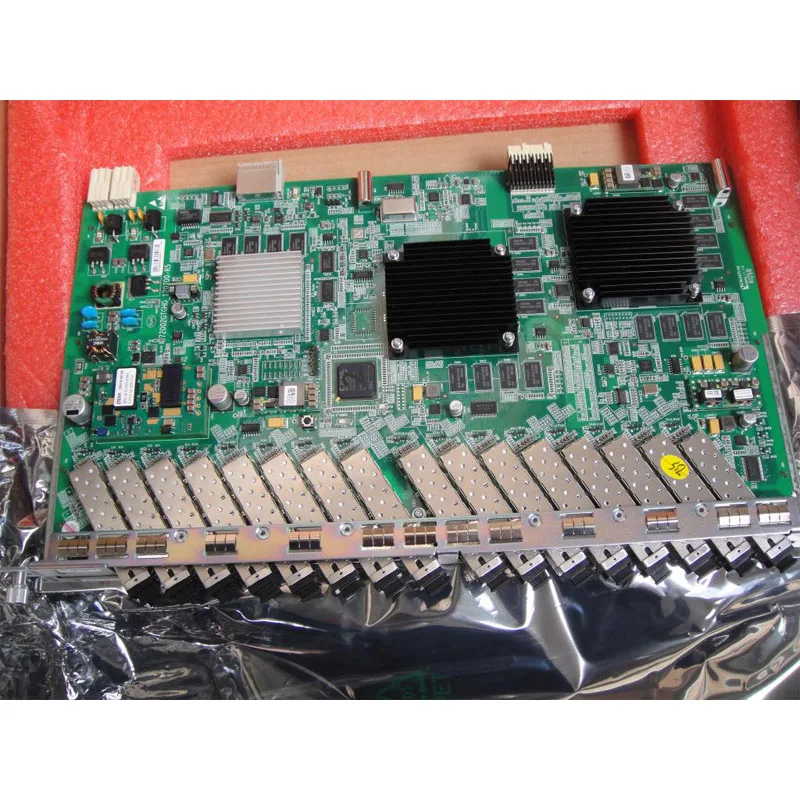

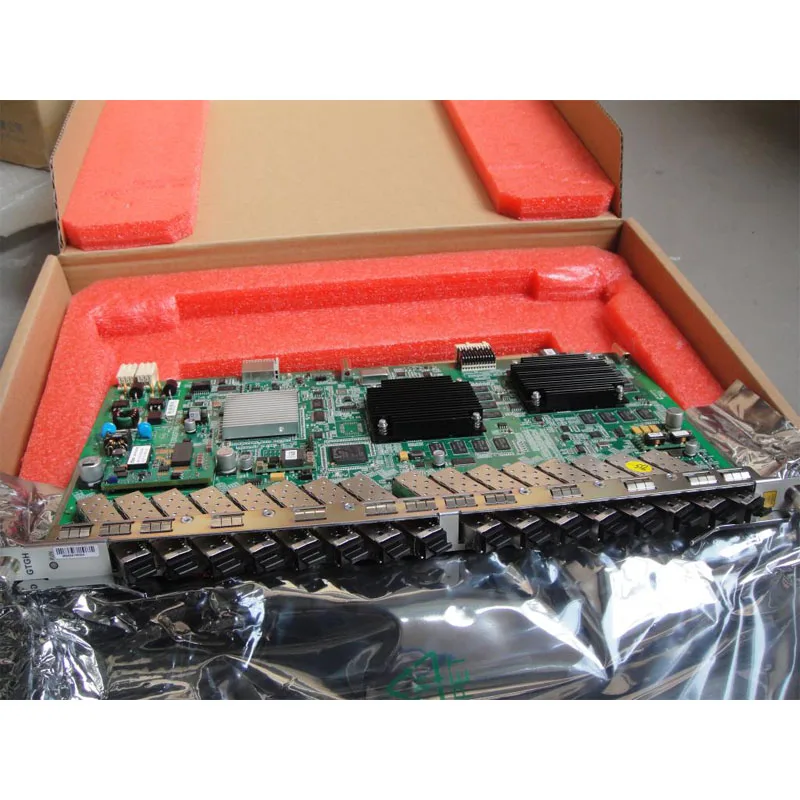

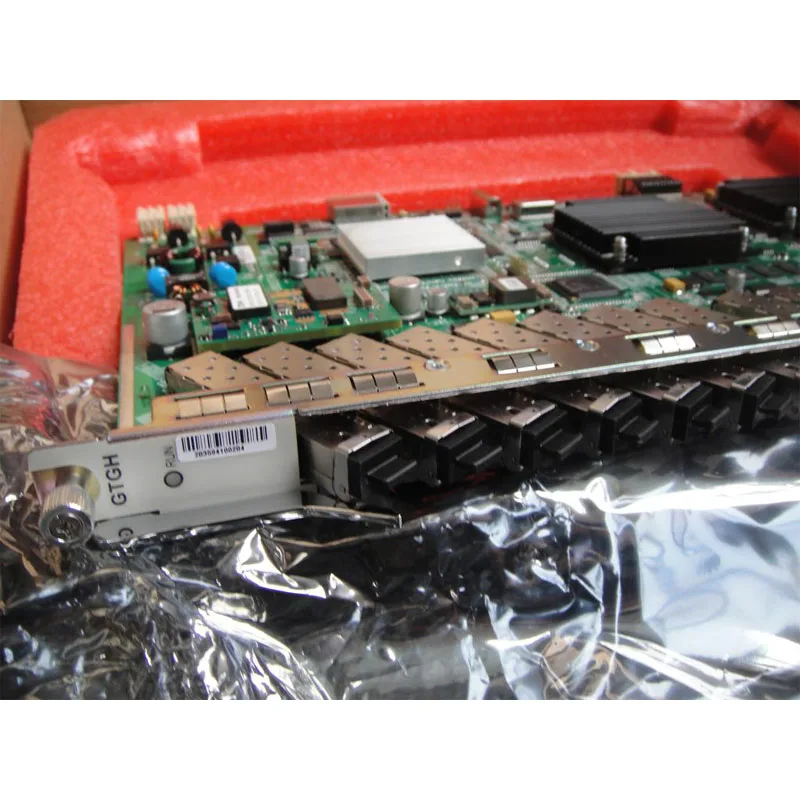

The ZTE GTGO is an 16-Port GPON subscriber card designed to be used with ZXA10 C300 and ZXA10 C320 equipment.

• High Density:
- 16GPON ports per card, up to 1:128 split ratio
• GPON Function:
- Support ONU power saving management defined in G.987.3
- 1024 T-CONTs per PON port, 4096 GEM ports per PON port
• High TM Performance:
- Support H-QOS
- 1024 queues and 356 schedulers per PON port
- Support color-sensitive RED and WRED discard algorithm
• Clock / Time Function:
- Receive 1PPS+TOD signals and send them to the ONU through a PON channel
• Low Power Consumption:
- Newly developed lower power GPON MAC chip
- Reduce 30% power consumption on industry average
