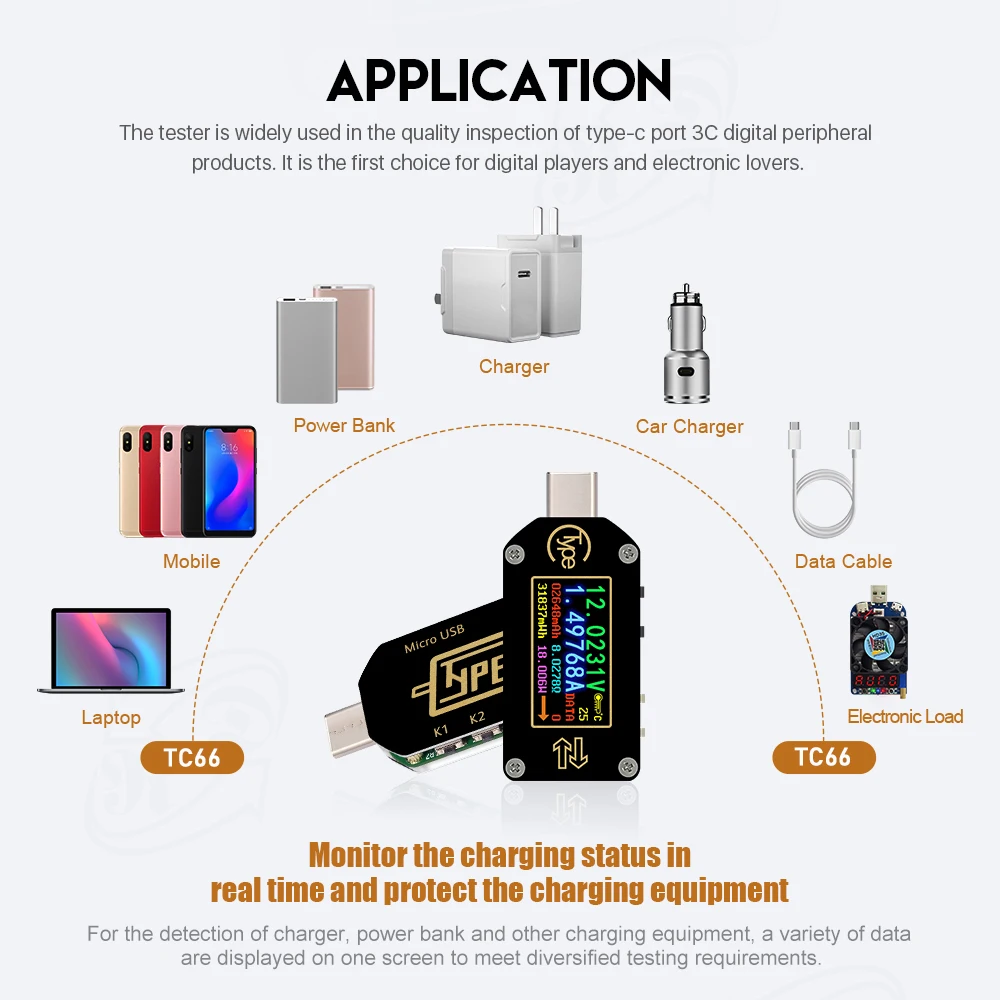

This tester is widely used in the quality inspection of type-c port for 3C digital peripheral products. It is the first choice for digital players and electronic lovers.

Features:
For the detection of recharger, power bank and other charging equipment, a variety of data are displayed on one screen to meet diversified testing requirements.

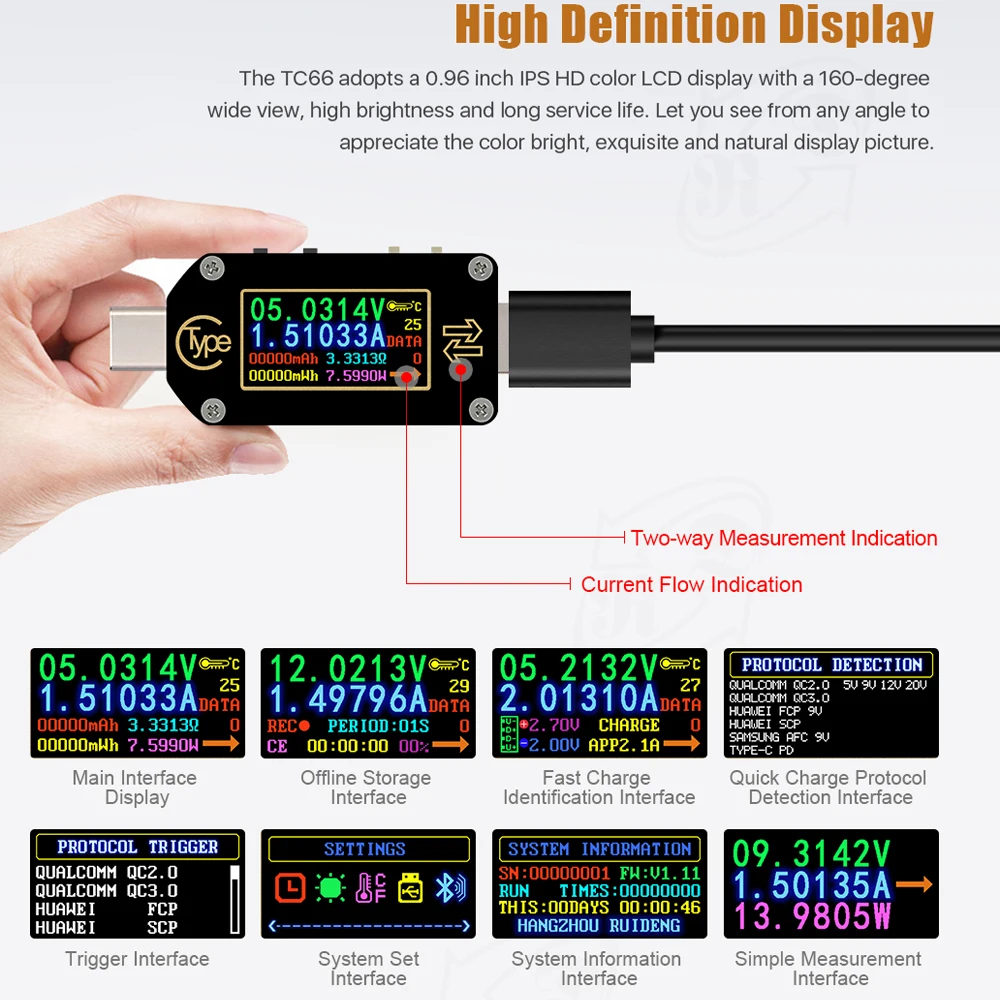

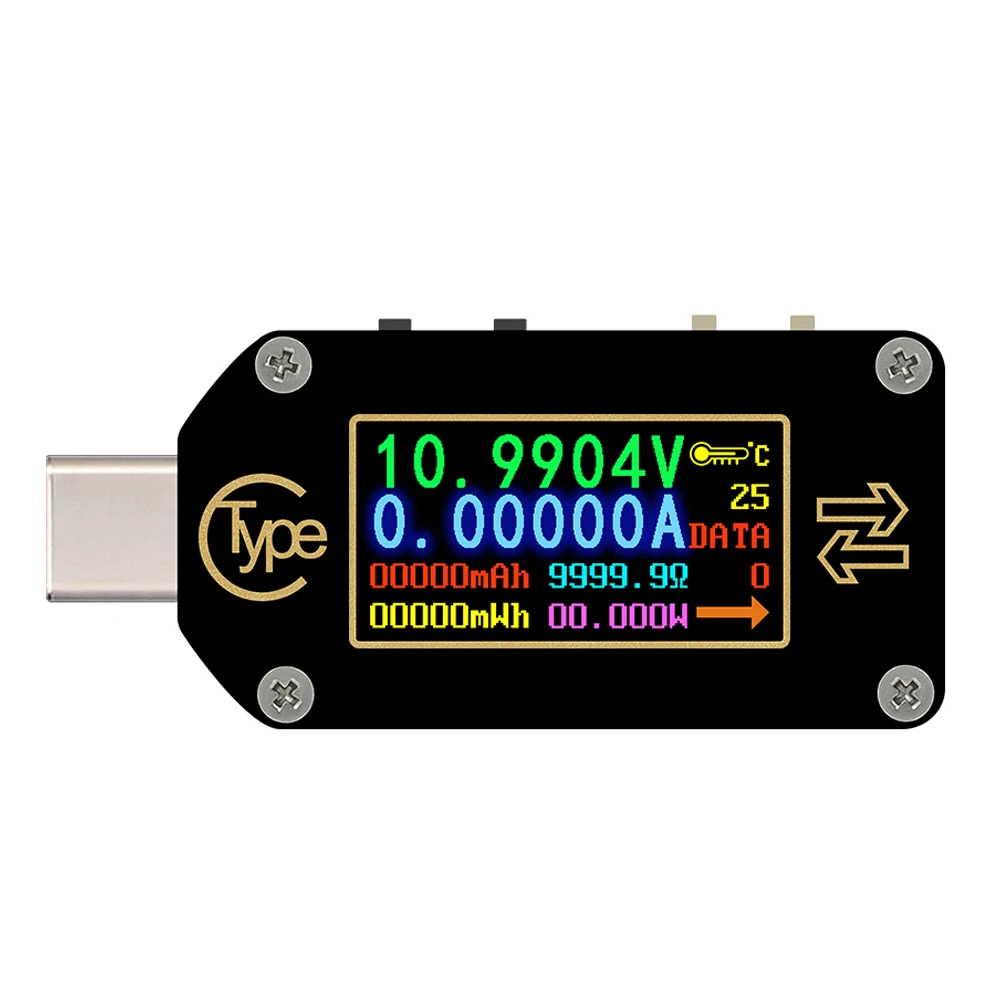

Adopts a 0.96 inch IPS HD color LCD display with a 160-degree wide view, high brightness and long service life. Let you see from any angle to appreciate the color bright, exquisite and natural display picture.

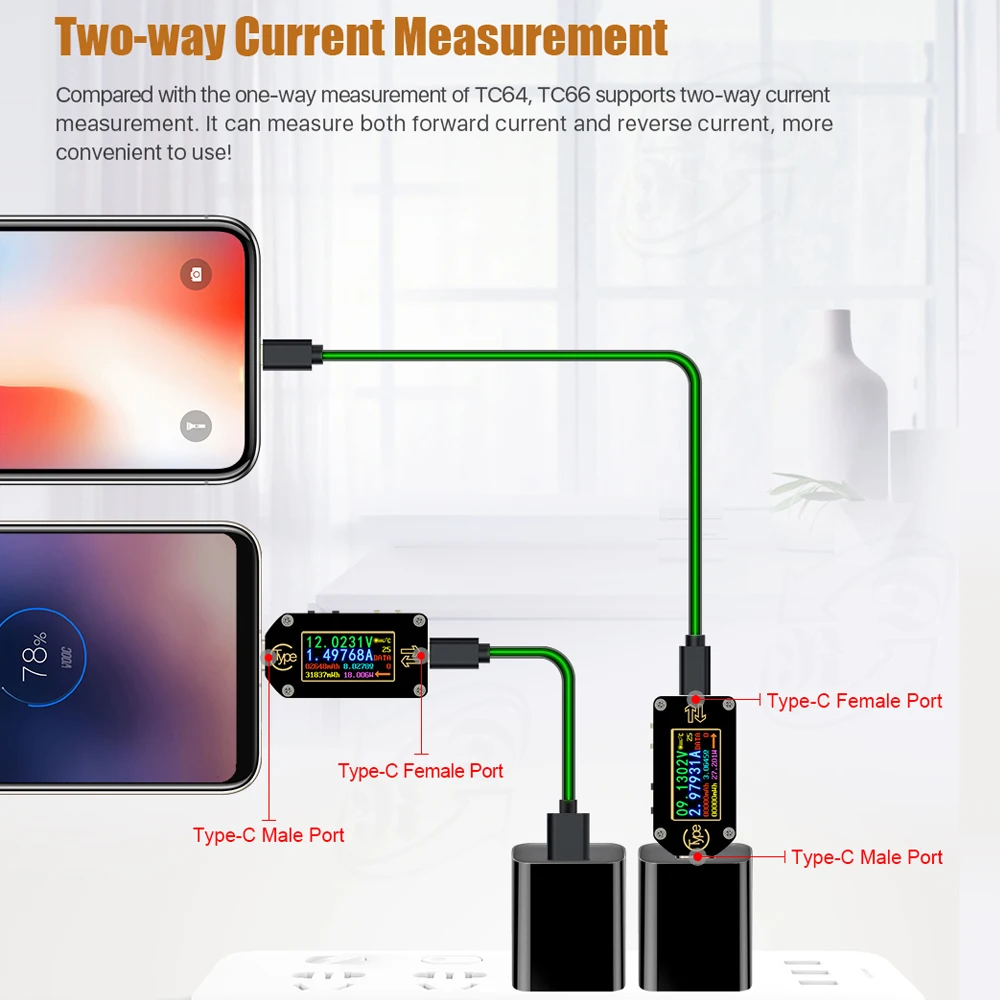

Supports two-way current measurement. It can measure both forward current and reverse current, more convenient to use.

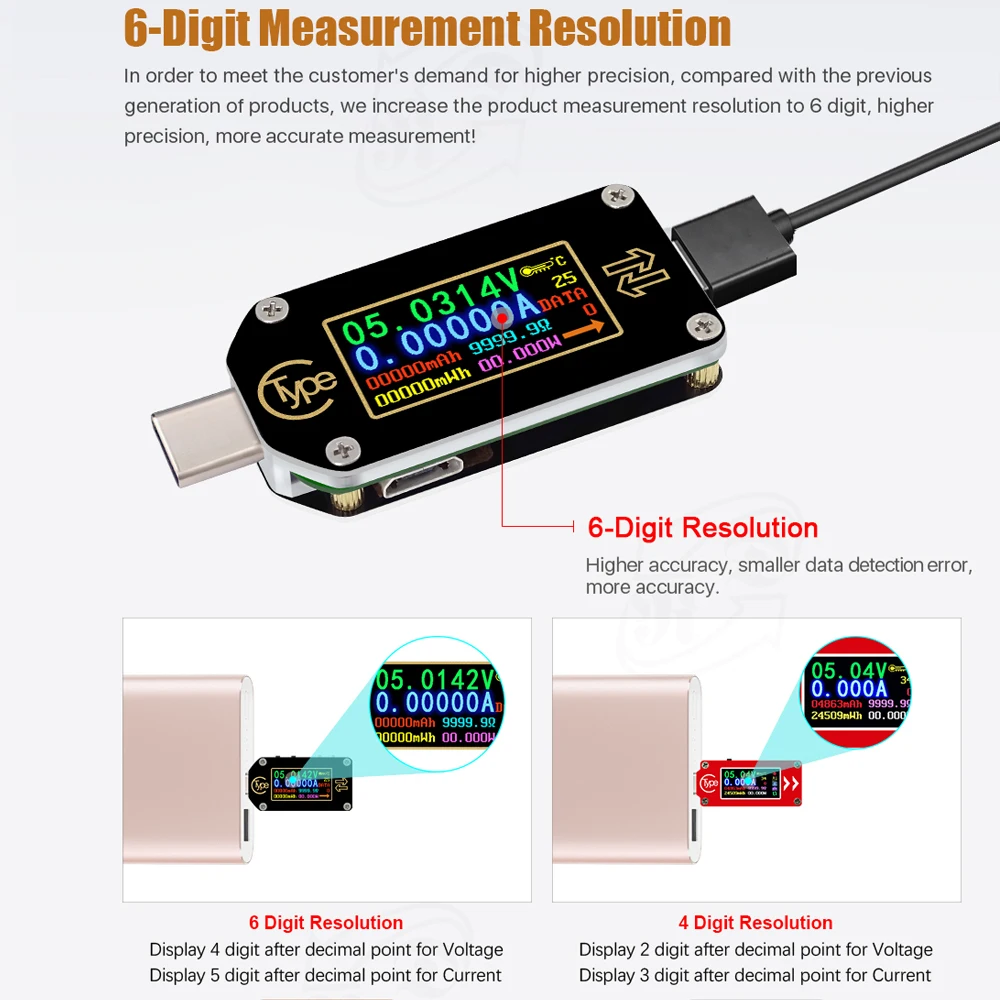

6-digit measurement resolution is more accurate.

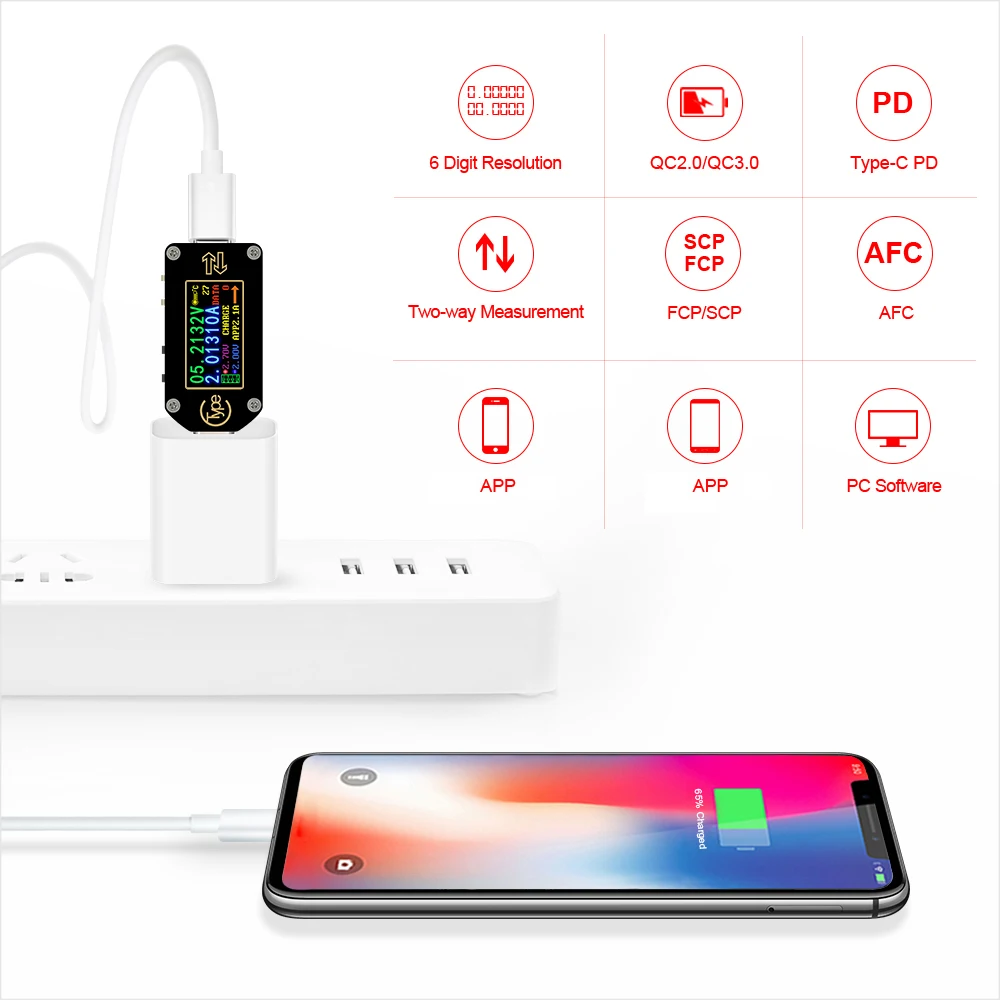

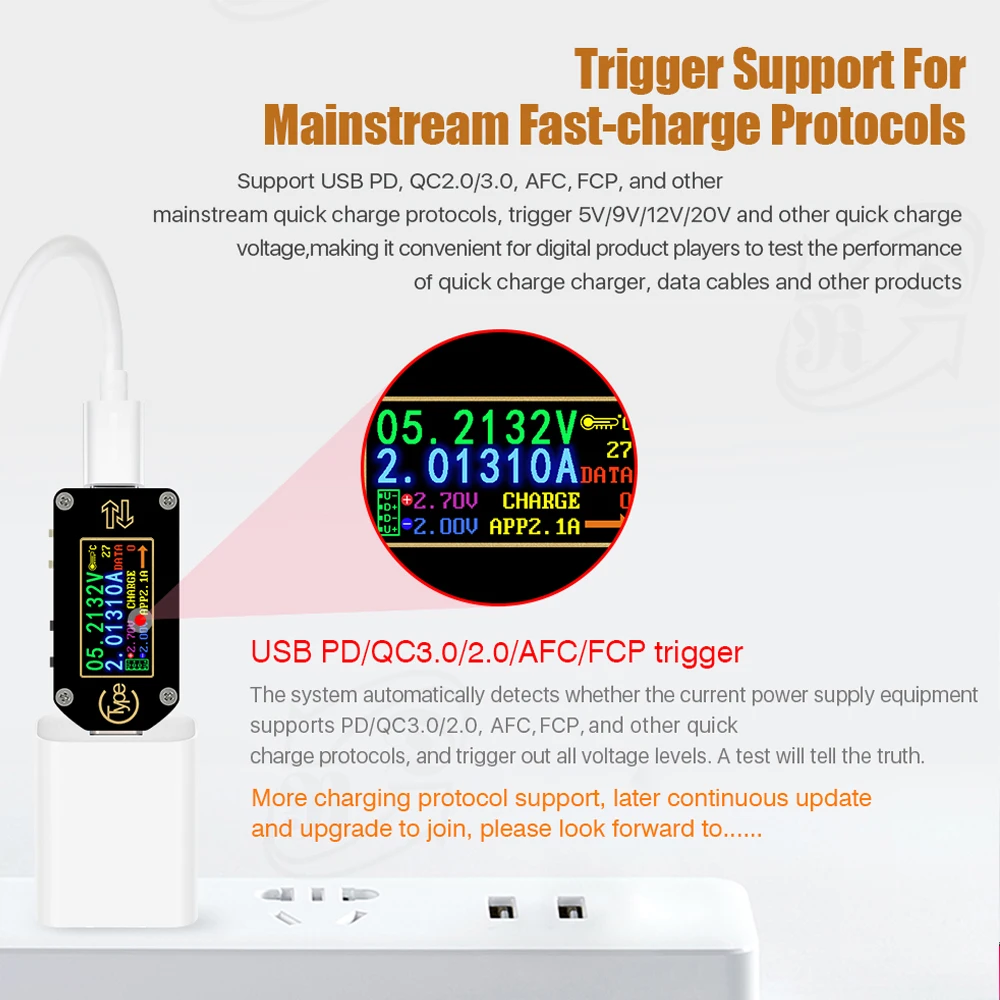

Supports USB PD, QC2.0/3.0 and other mainstream quick charge protocols, trigger 5V/9V/12V/20V and other quick charge voltage, making it convenient for digital product players to test the performance of quick charge recharger, data cables and other products.

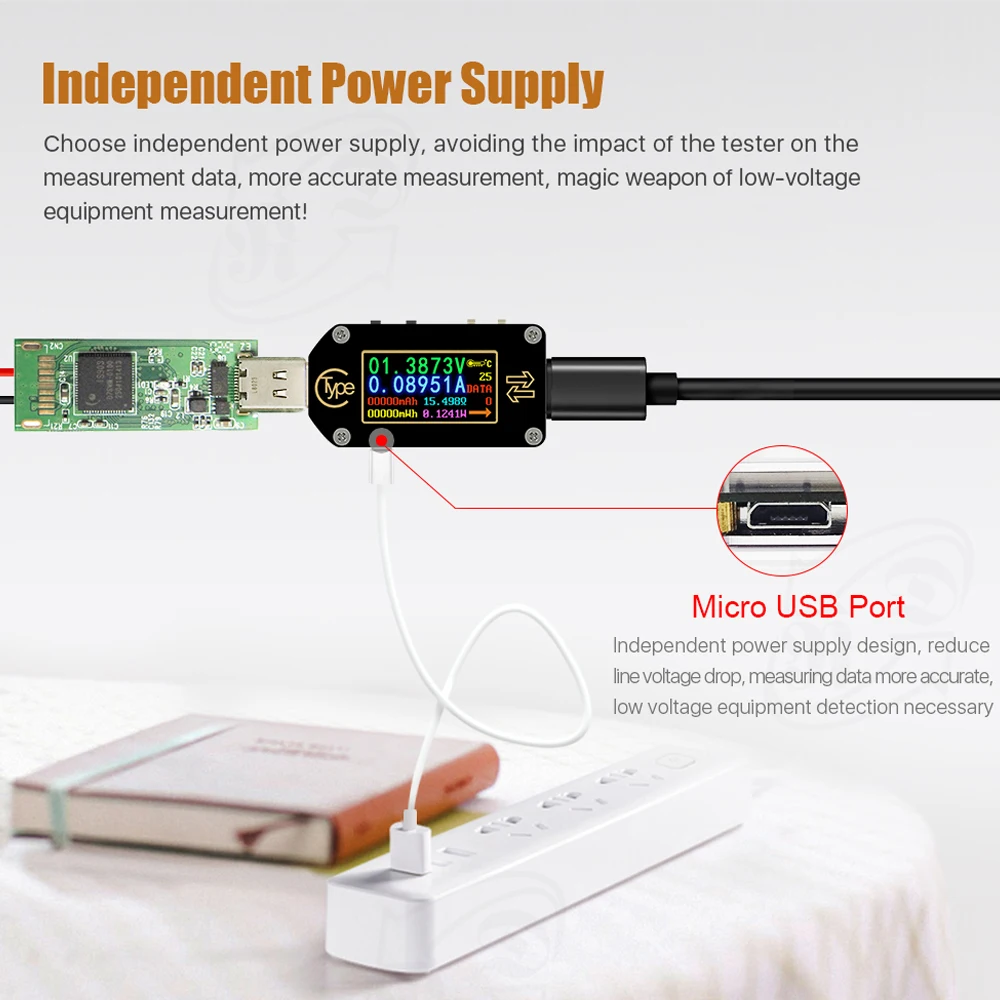

Choose independent power supply, measured from 0V, avoiding the impact of the tester on the measurement data, more accurate measurement, magic weapon of low-voltage equipment measurement.

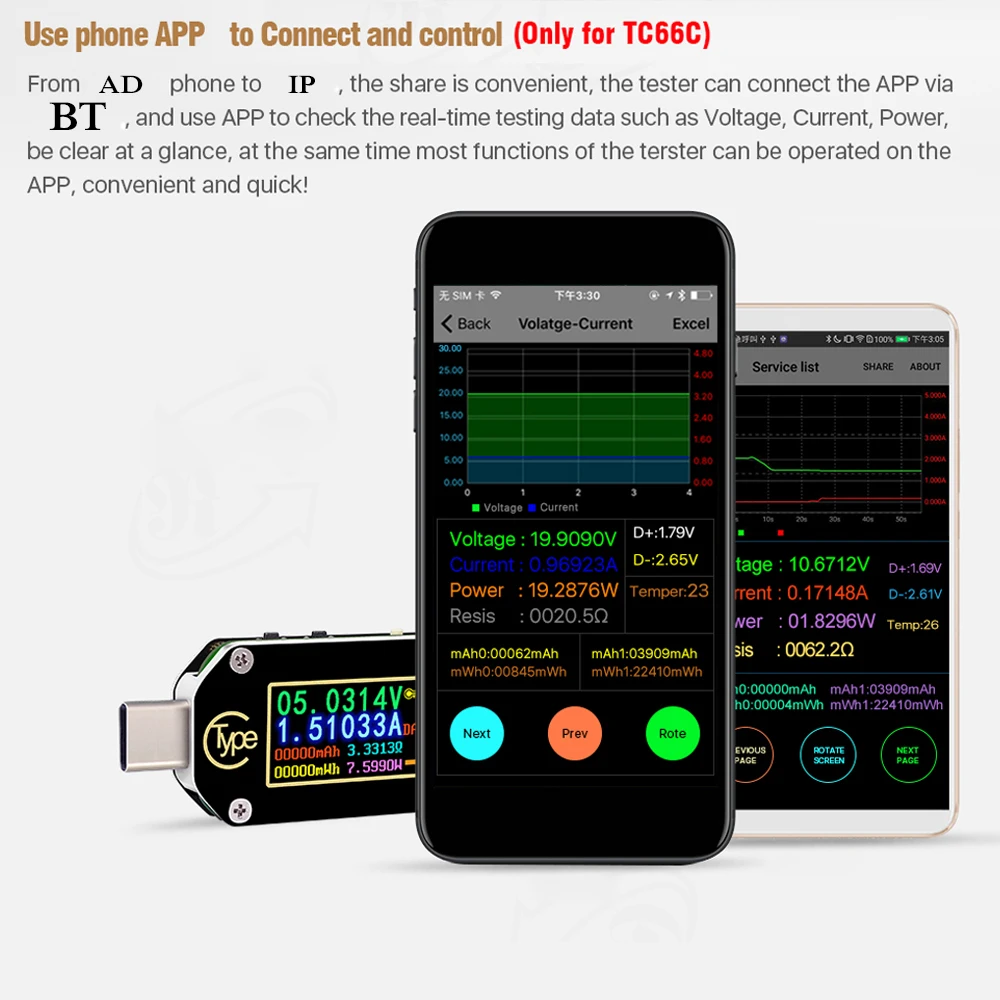

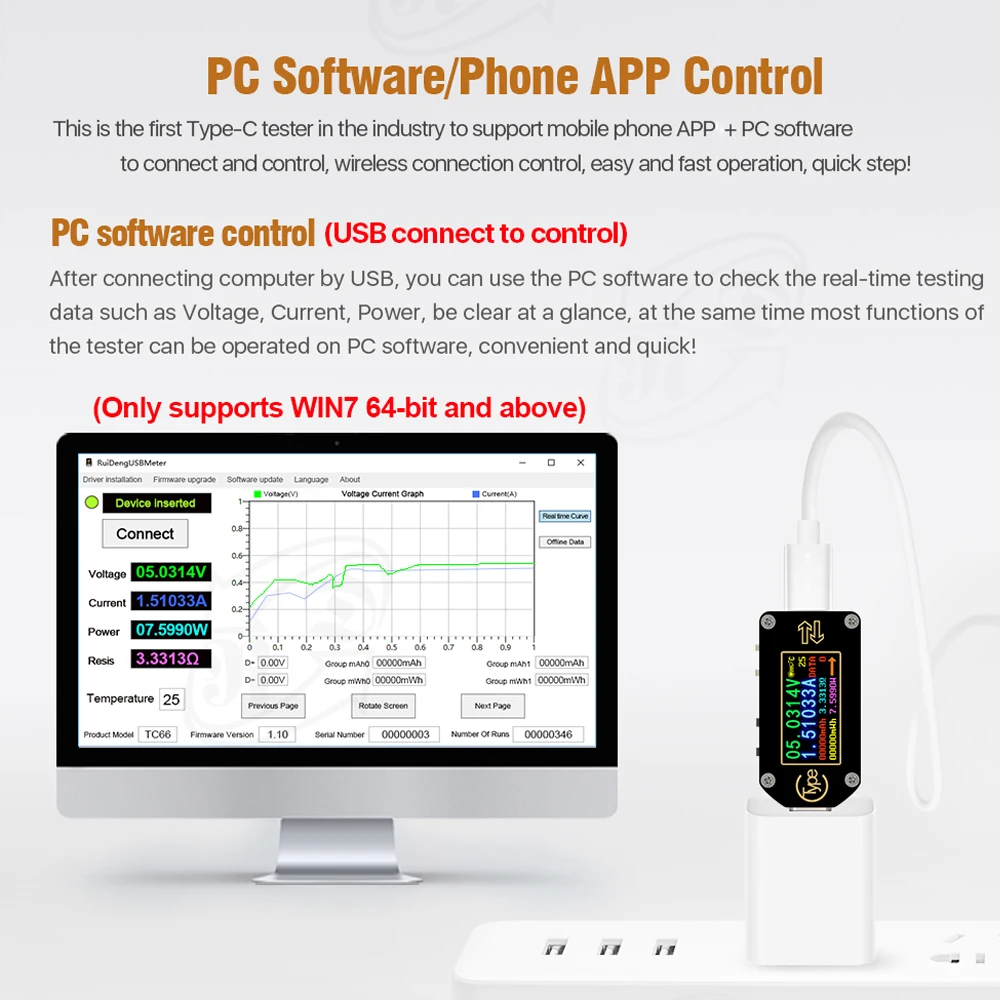

This type-c tester supports mobile phone APP+PC software to connect and control, wireless conncection control, easy and fast operation.

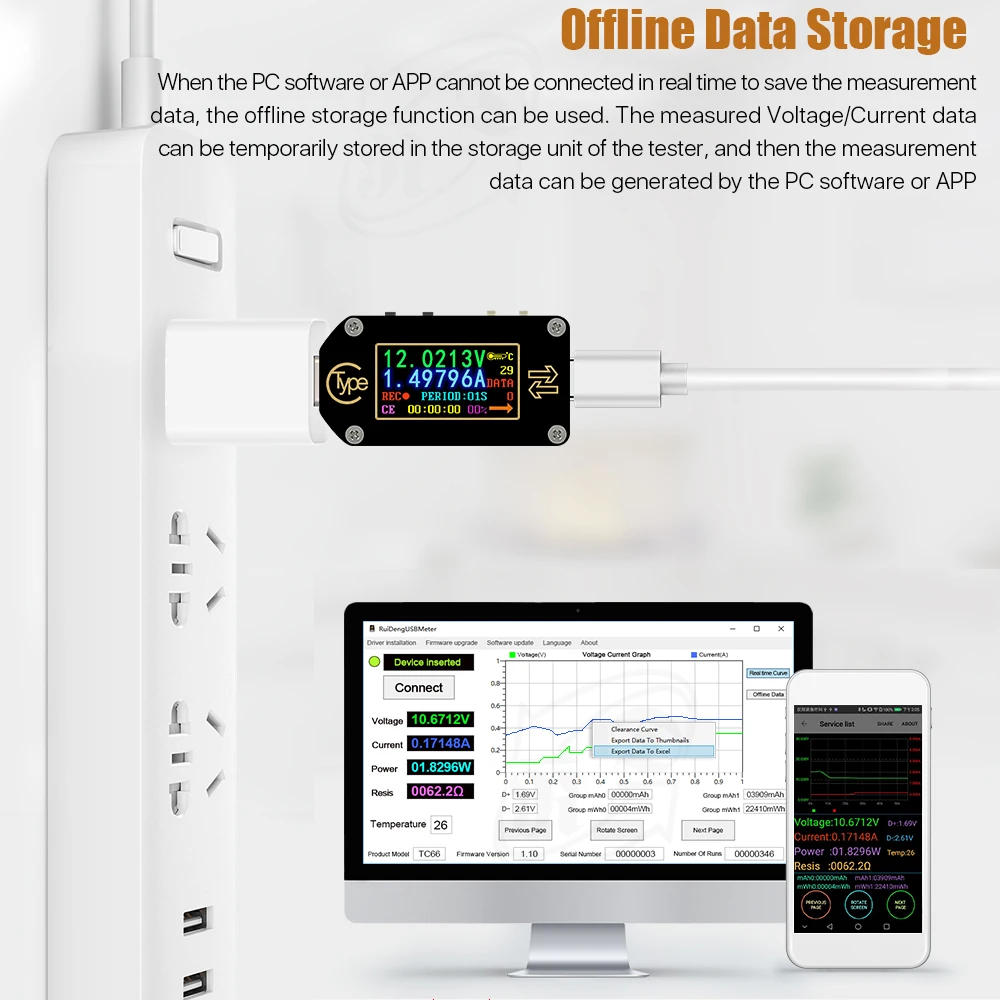

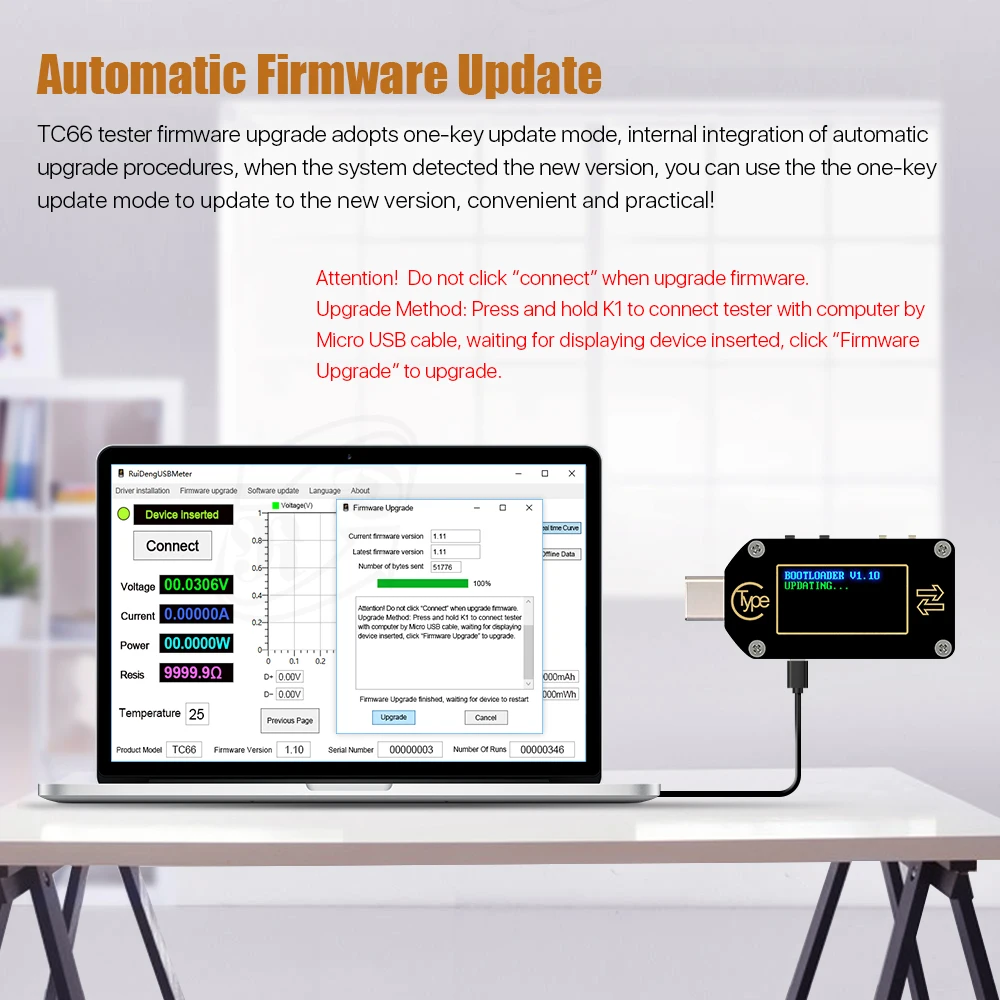

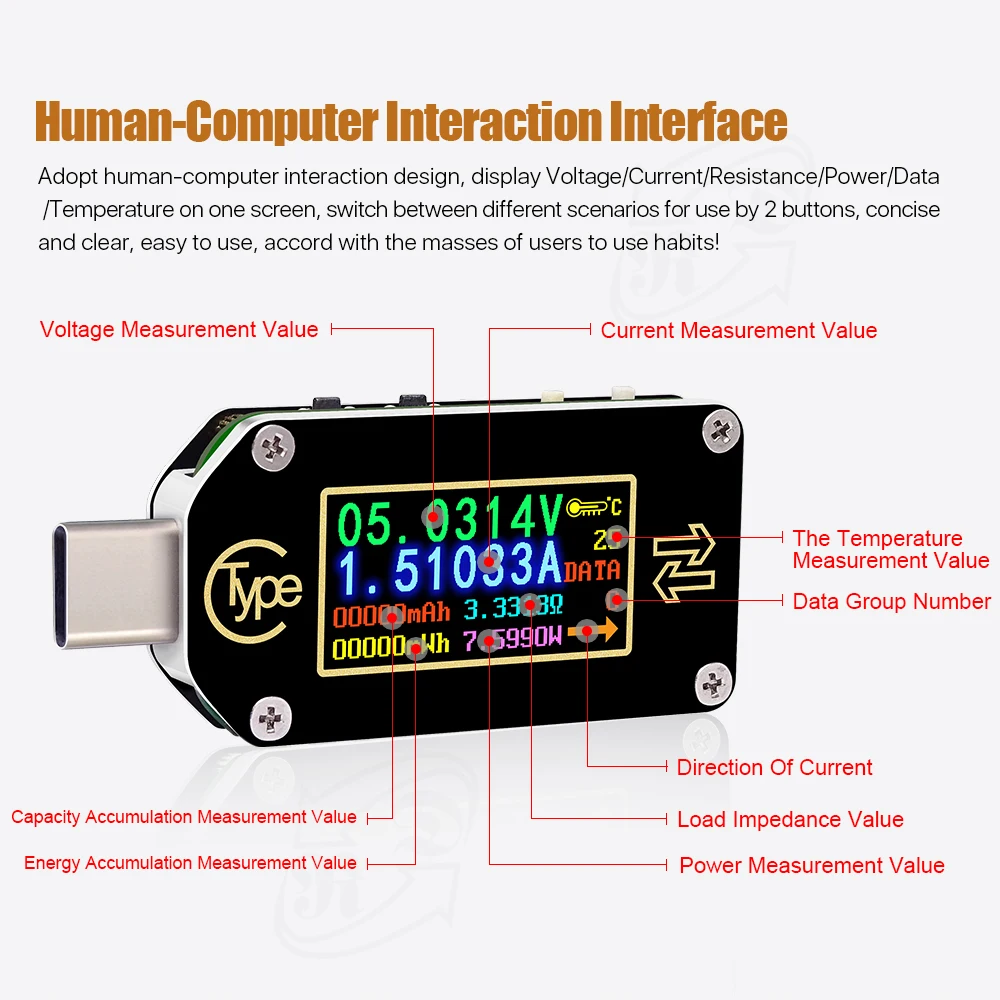

Human-computer interaction interface, automatic firmware update, offline data storage.

Specifications:
Main material: PC
Color: black

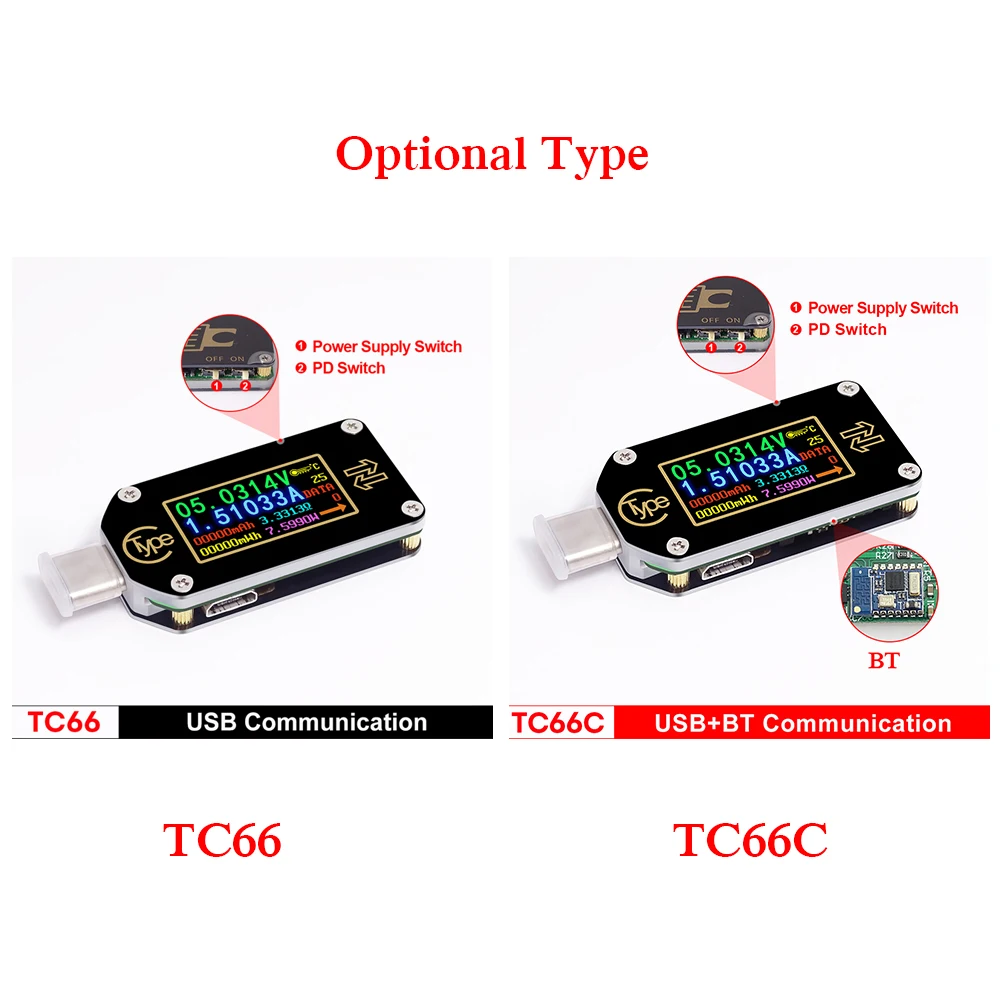

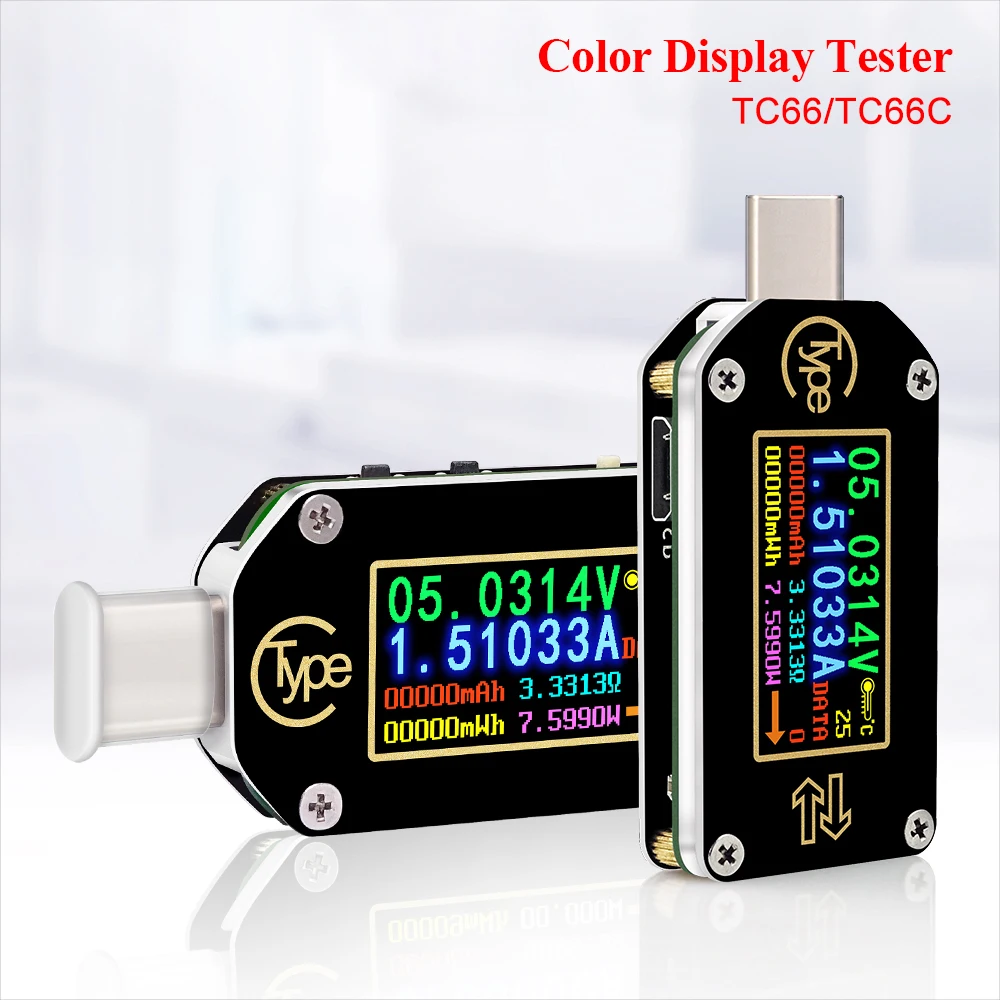

Type: TC66, TC66C (optional)

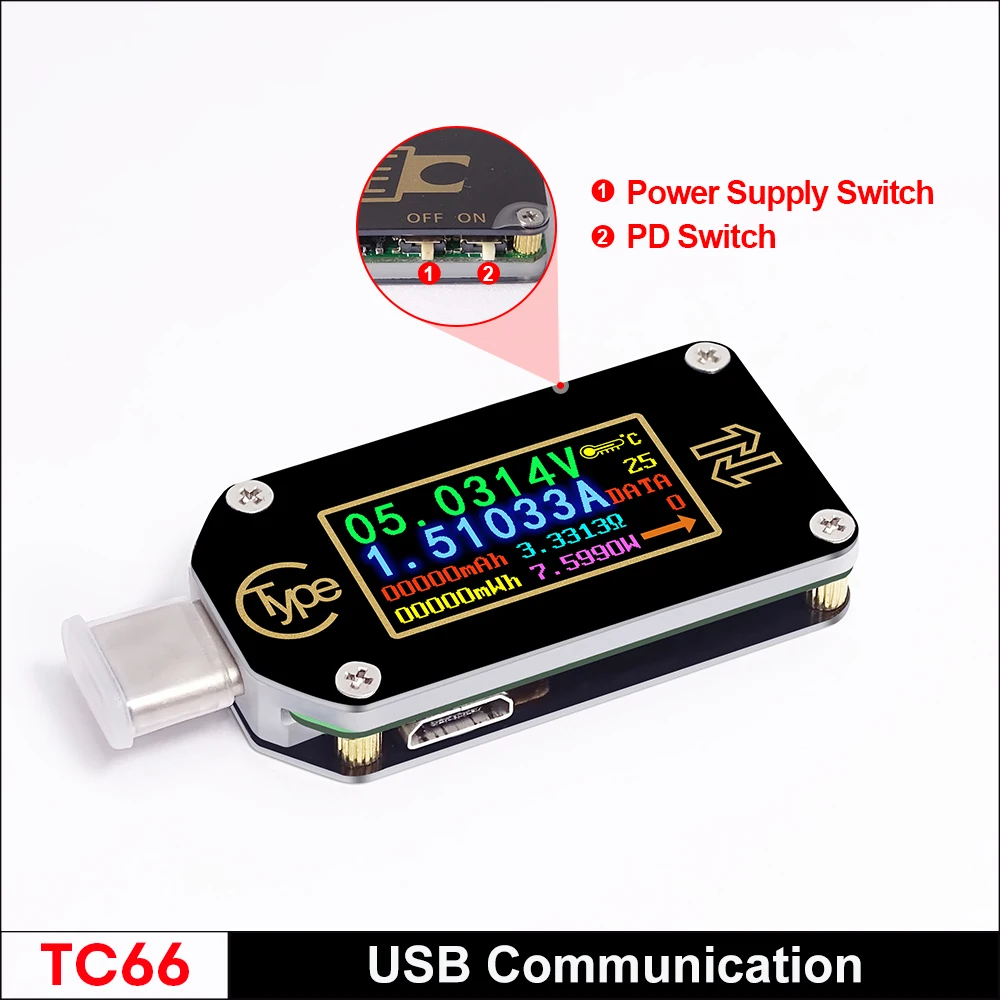

TC66: USB communication

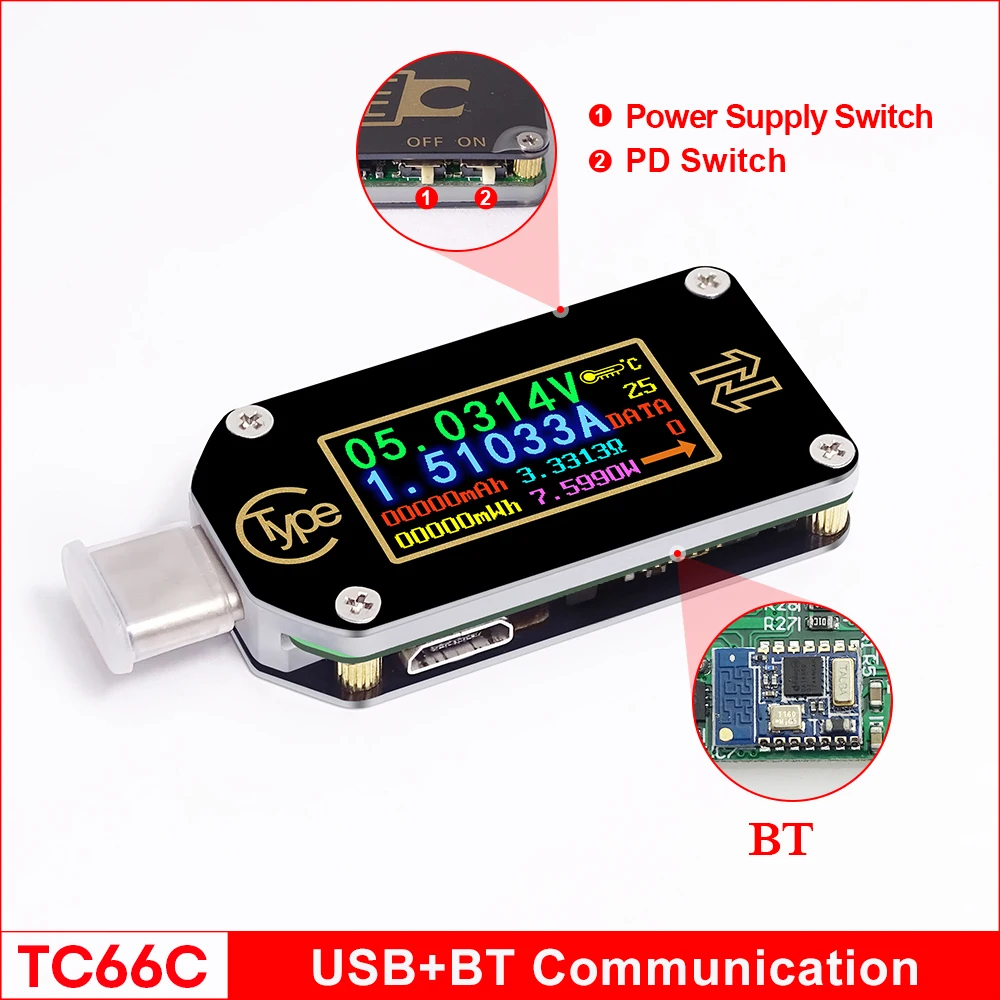

TC66C: USB+BT communication

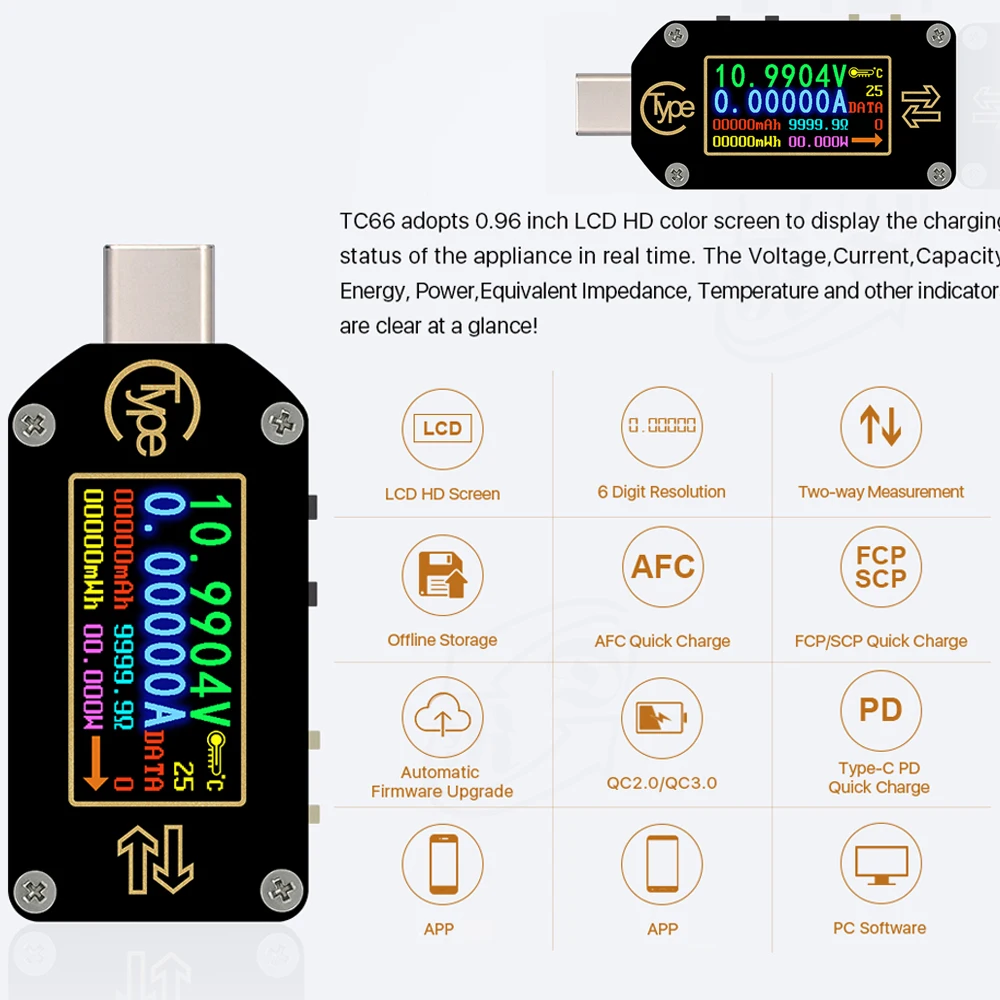

Display screen: 0.96 inch color IPS display, 160*80
Voltage measurement range: 0.005V-30.0000V
Voltage measurement resolution: 0.0001V (0.1mV)
Voltage measurement accuracy: ±(0.05%+10 digits, at 23℃)
Current measurement range: 0-5.00000A
Current measurement resolution: 0.00001A (0.01mA)
Current measurement accuracy: ±(0.1%+20 digits, at 23℃)
Power supply voltage: 3.5-24V
Capacity accumulation range: 0-99999mAh
Energy accumulation range: 0-99999mWh-999.99Wh
Power measurement range: 0-150W
Load impedance range: 1Ω-9999.9Ω
Refresh rate: 2Hz
Temperature measurement range: 0℃~80℃/32℉~176℉
Working temperature range: 0℃-45℃/32℉-113℉
Auto screen off time: 0-9mins

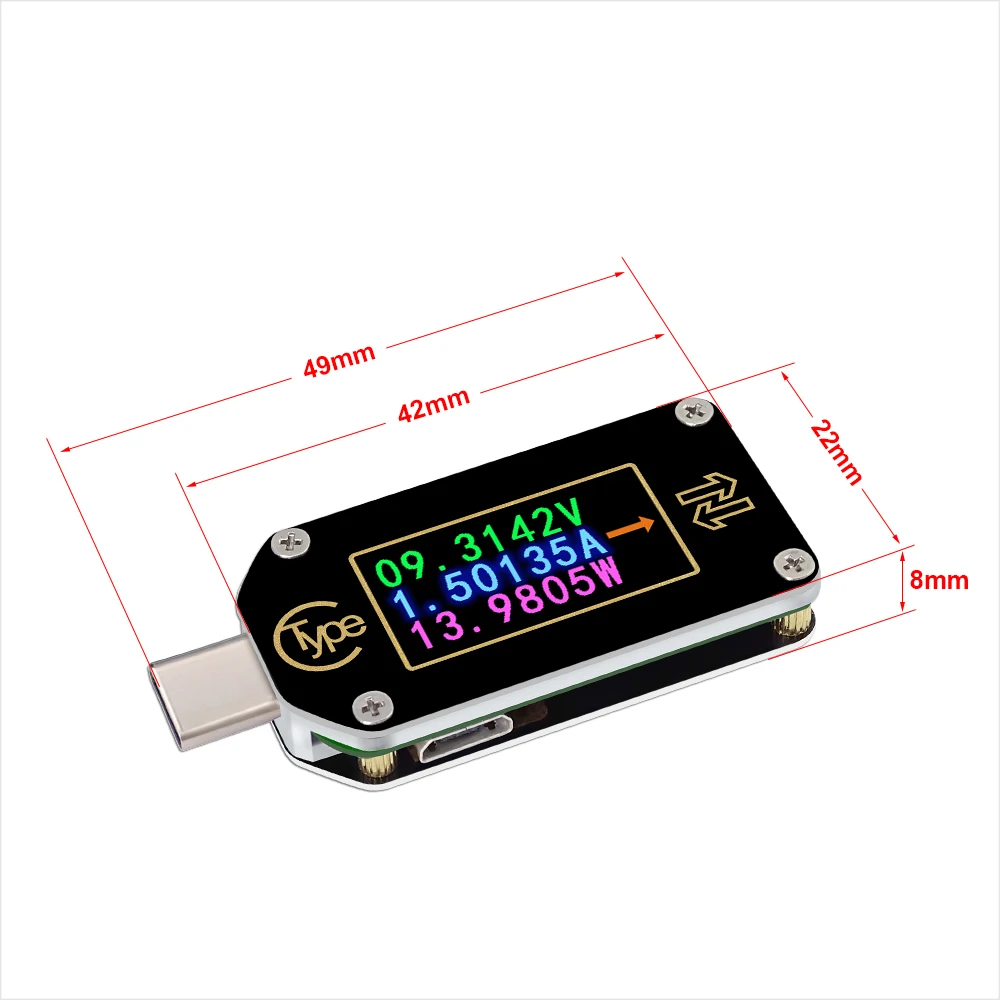

Item size: 49 * 22 * 8mm / 1.9 * 0.9 * 0.3in
Item weight: 8g / 0.3ounce
Package size: 61 * 32 * 12mm / 2.4 * 1.3 * 0.5in
Package weight: 22g / 0.8ounce

Package list:
1 * USB Color Display Tester
