8 100M Optical Fiber B Side Port to 2 1000M RJ45 Electrical Port Single Fiber Optical Gigabit Ethernet Fiber Switch,Euro Charger

Unmanaged Fiber Switch

8Fiber 100Mbps + 2 1000M RJ45 ports

Introduction

 This unmanaged Switch is designed for fiber optic multi-fiber Ethernet aggregation switch designed for applications, it has 8 optical ports (optional), and two 10/100 / 1000M adaptive RJ45 port. Users could use different interfaces optical modules, enabling 10/100 / 1000Base-T twisted pair and seamless data link between 100Base-FX fiber optic cable. It is not only to extend the transmission distance, but also with isolation protection, good data security, performance stable, easy to maintain and many other advantages, so as to effectively avoid the threat of harsh environments lightning, surge and electromagnetic interference and other communications equipment.

    This fiber switch has 2 RJ45 port twisted cable interface and  8 optical interfaces are used to connect the twisted cable and fiber. The feature is the RJ45 Port can Straight line / cross-line adaptive, can be a full-duplex, also half-duplex mode.

Fiber port of switch is only 100M full-duplex mode; RJ45 ports can operate at 10M, 100M or 1000M, full or half duplex mode, is a real 10/100 / 1000M adaptive optical switches.

Optical Module can be Multi-mode and single-mode. And Single mode can be dual fiber and single Fiber. Dual Fiber module required to two-core fiber to transfer 1 Ethernet signal. Single Fiber only need one core to transfer 1 Ethernet signals.

Features

◆8 Fiber ports and 2 RJ45 port（optional）

◆RJ45 can be self-adaptive 10/100/1000M、Full / half duplex mode, straight line / cross-wire connection

◆Fiber port support 1000M full-duplex mode

◆Supports flow control, can prevent broadcast storms

◆Supports 4K VLAN IDs, 3 Level QoS, TPv4, TPv6

◆Supports Ports parallel  functions（Trunking）

◆Supports Max 1632 bytes

◆Low power consumption, low heat,long time stable performance

Specifications

◆Standard：IEEE802.3/u/z/ab,10Base-T, 100Base-TX, 1000Base-T and 100Base-X

◆MAC Address List：8K（automatic update）

◆Jumbo Frame Memory：1MKb share

◆Backplane bandwidth：2G， non-blocking wire-speed forwarding

◆Interface standard: UTP:RJ-45, 10/100/1000Mbps(sefl-Adaptive);

   Fiber Port::100Mbps；

◆Cable：twisted-pair cables：5E,CAT6（Max distance: 100M）

Fiber（Multi-mode) 50/125，62.5/125μm（Max distance 550/224M）

Fiber（single mode）：8/125，8.7/125，9/125μm（Max 10～100km）

◆Flow control：Full-deplux IEEE802.3x；

Half-duplex backpressure flow control

◆Network delay：＜20μs

◆LED indicator: PWR,FX1 ,FX2 ，FX3 ,FX4 ,FX5 , FX6 ,FX7 ,FX8.

◆Power supply: AC: 220V(100-240V),50～60Hz; DC:5V,3A

◆Environment Temperature: 0 ～ +50℃；

◆Storage Temperature: -40 ～ +70℃；

◆Humidity:：5% ～ 90%

◆Dimension：26×100×270mm；

LED Indicator:

The Green right UTP: ON : UTP Port: 100Mbps;

The Yellow left UTP: ON: UTP Port : 1000Mbps;

Green and Yellow Both OFF: UTP Port: 10M;

PWR: ON: Working

FX1…FX8：ON: FX1…FX8 working

Advantages：

      Ideal for high-definition digital network monitoring network, large-scale monitoring networks as fiber aggregation, can be used as small and medium monitor network core switches use, it can aggregate 8 - 100M fiber links, support for IP video stream packets with ultra illegal length packets, use stablely, application flexible, cost-saving for your network.

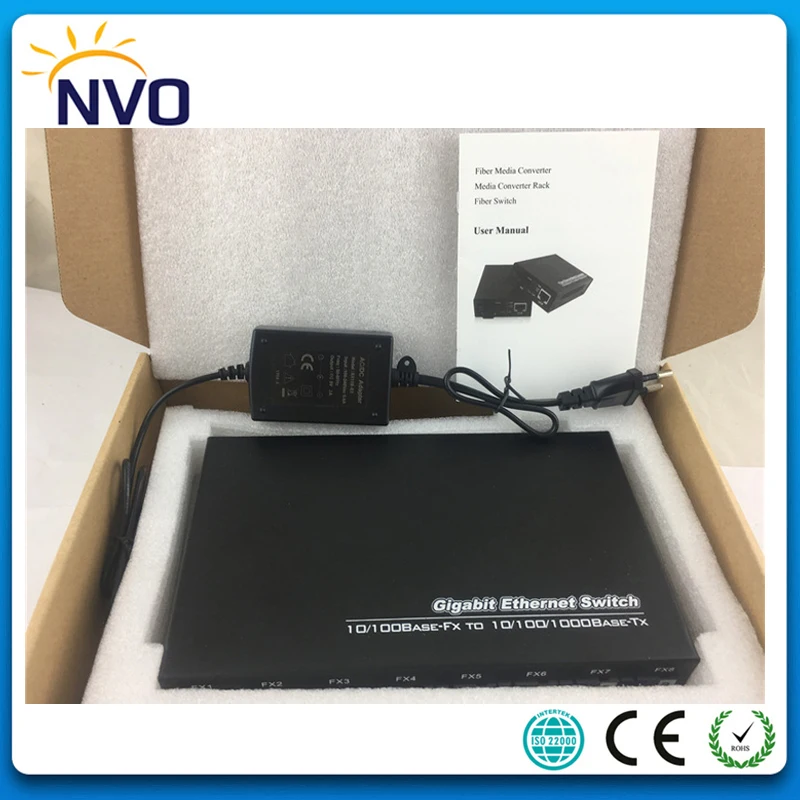

Packing List

Unmanageable fiber switch                    1piece

DC5V 3A power adapter                       1piece

User manual
