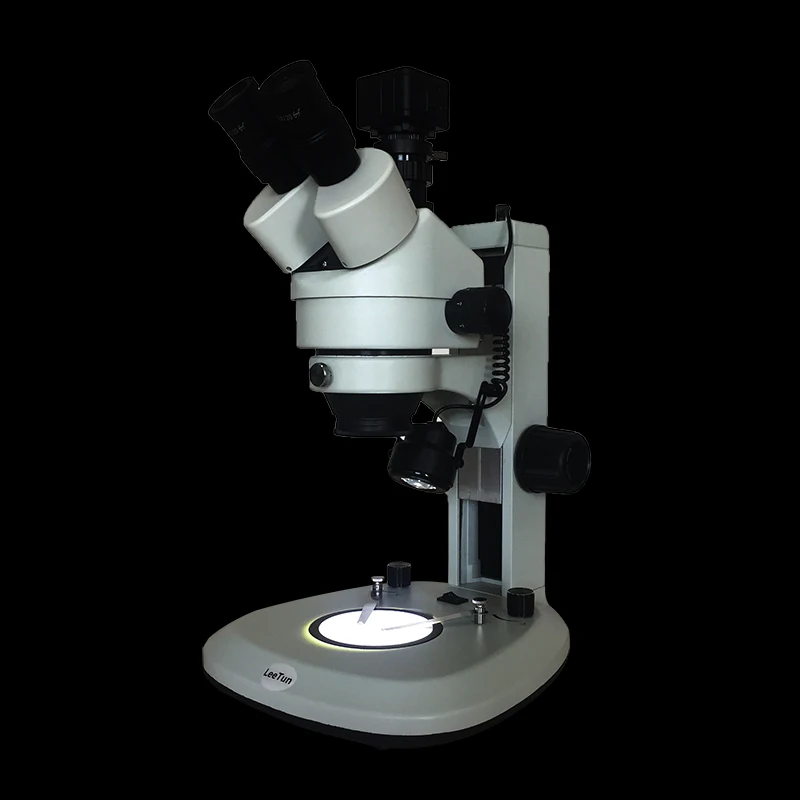

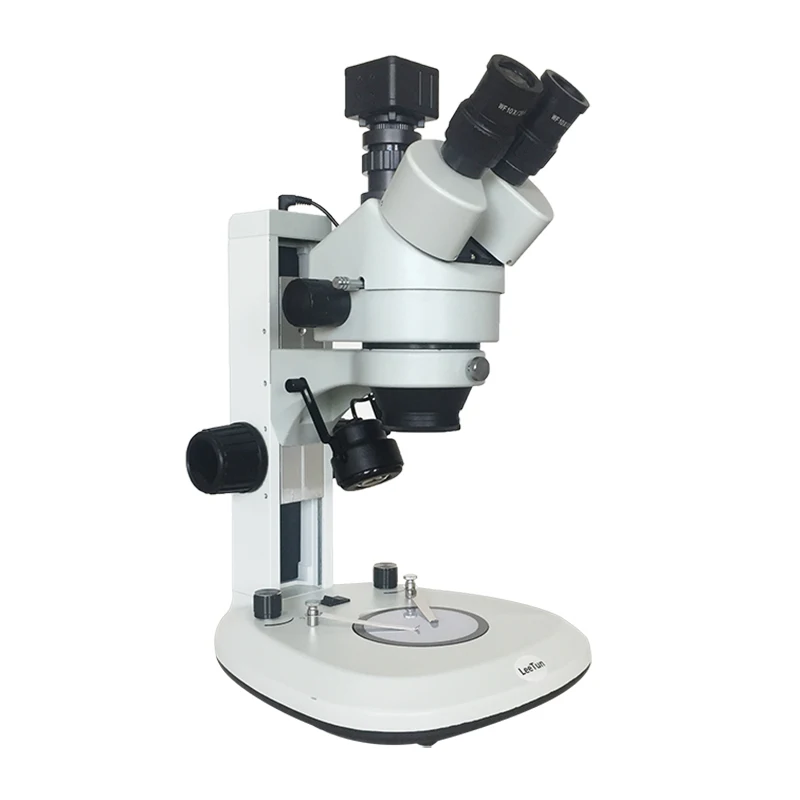

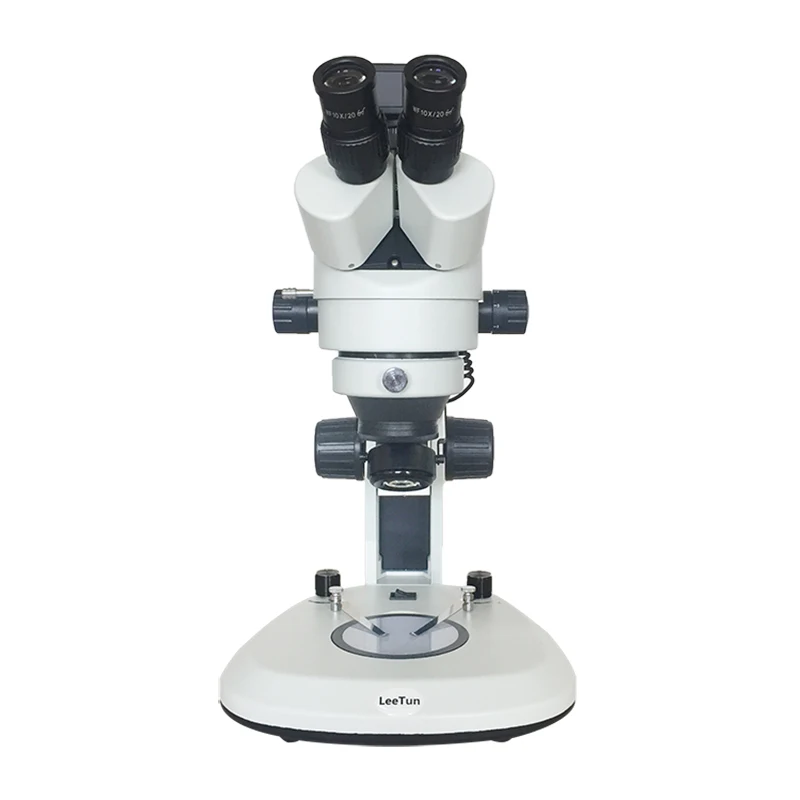

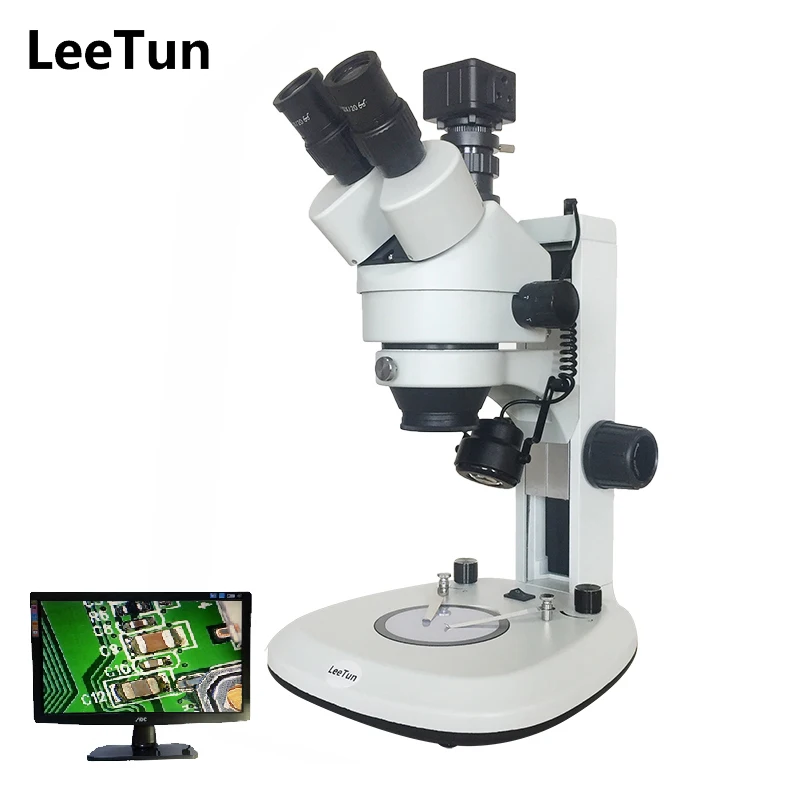

LeeTun 3.5X-90X Zoom Illuminated Industrial Stereo Microscope 360 Degree Rotatable Trinocular Head for PCB Inspection Mobile Phone Repair with Top Bottom LED Light WF10X/20mm Eyepiece and 100mm Working Distance 5.0MP USB Camera

Attention: Only the microscope and USB camera included, NOT including the monitor!

Applications:
This series zoom microscope adopts streamline integrated mechanical design, Easy operation, long working distance,clear resolved image, enclosure integrated. The microscope is used extensively world medical research and health care, biology and botany research, and agriculture, as well as in electronic component manufacturing. Specially suited for LED, PCB inspection, pressing plating and electronic component inspection.

Specifications:
Brand: LeeTun
Model: TXB2-D7-DG
Wide Field Eyepiece: WF10X/20mm
Objective: 0.7X-4.5X zoom
Auxiliary Objective: 0.5X and 2X Barlow Lens
Total Magnification: 3.5X-90X zoom
Zoom Ratio: 1 : 6.4
Working Distance: 100 mm (3.94"), or 165 mm (6.50", when 0.5X Barlow Lens), or 30 mm (1.18", when 2X Barlow Lens)
Articulated Free Trinocular Head
Diopter Adjustment: +/-5dp
Interpupillary Distance: 55-75 mm (2.17"-2.95"), 45 degree Inclined, 360 degree Rotatable
Stage: Pillar sector base size 285 x 238 mm, 95 mm Frosted Glass & Black-white Reversible Stage Plate
Rack and Pinion Coarse Focusing Adjustable Mechanism
Illumination: Top and Bottom LED Light
Power Supply: 110V - 230V

Camera Specifications:
Dimension: 50X55X40.5MM
Interface: USB2.0
Resolution: 2592X1944
Sensor Type: 1/2.5" true color CMOS
Pixel Size: 2.2umX2.2um
Frame Rate: @640X480:30FPS;   @2592X1944:10fps
Auto White Balance: Yes
Exposure: Manual/Auto
Image Format: JPG/BMP/PNG/GIF
Video Format: AVI
Operating System: win8 / win7(32bits&64bits) / Vista / XP / Windows
Supported: Capture software, driver
Software: Capture software, driver
Tube size: C Port, Adapter ring (optional)  23.2mm, D30mm or 30.5mm

Product Features:
3.5X-90X super wide zoom magnification power
High resolution with great flatness and contrast, giving sharp and clear images
Trinocular head with 45 degree inclined 360 degree swiveling eye tubes
Widefield eyepieces with 20 mm field of view
Large working distance 100 mm
Full optical glass elements
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eye-guards included
0.5X and 2X Auxiliary Objective included
5.0MP USB Camera Included

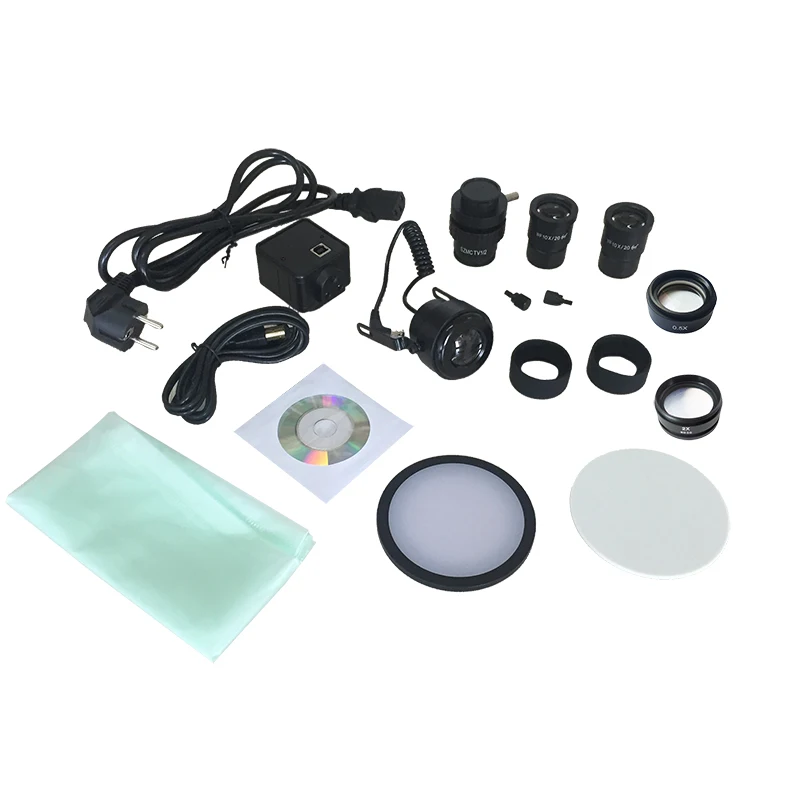

Packaged Included:
a set of microscope TXB2-D7
a pair of WF10X High Eye-piont eyepieces
a pair of eye-cups
a dust cover
a 5.0MP USB camera
a USB cable
a power cable
a 0.5X auxiliary barlow objective lens
a 2X auxiliary barlow objective lens
a 0.5X C-Mount Lens

Attention:
Because of the different Standard of every country, please message the voltage and the model of plug specification when purchase! Thank you!
If plug in stock doesn't meet you demand, a adapter will be provided freely.
Eyepiece of WF15X, WF20X are also available. (Not free)
