Freescale Carle MC9S08DZ60MLH CAN bus node board:

Shipping list:

• 1 node plate;

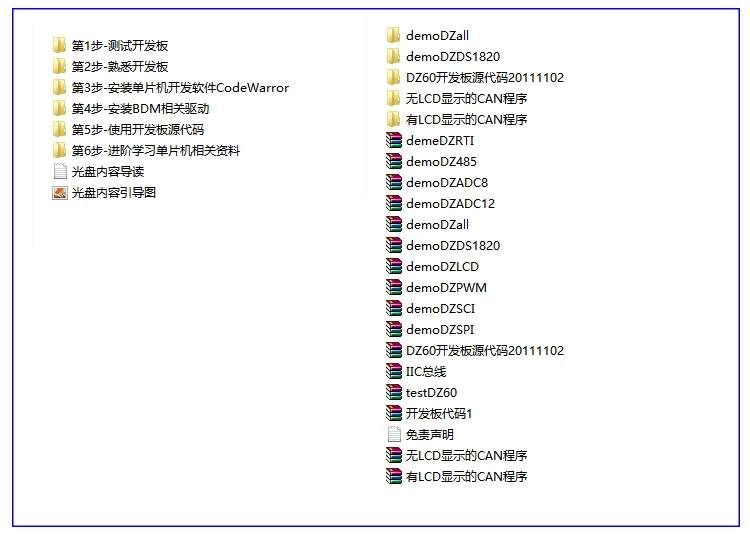

• 2 information: CW6.3 development environment special edition (this page has links below), BDM driver and manual set, CAN node board schematics and a quick start manual, CAN, ADC, PWM, SCI, RTI and other test procedures,DZ60 Chinese data manual. (email)

  Chinese data manual and CAN receive the source program, to give you a shortcut to learn, to get to think of the Carle microcontroller as easy as 51!

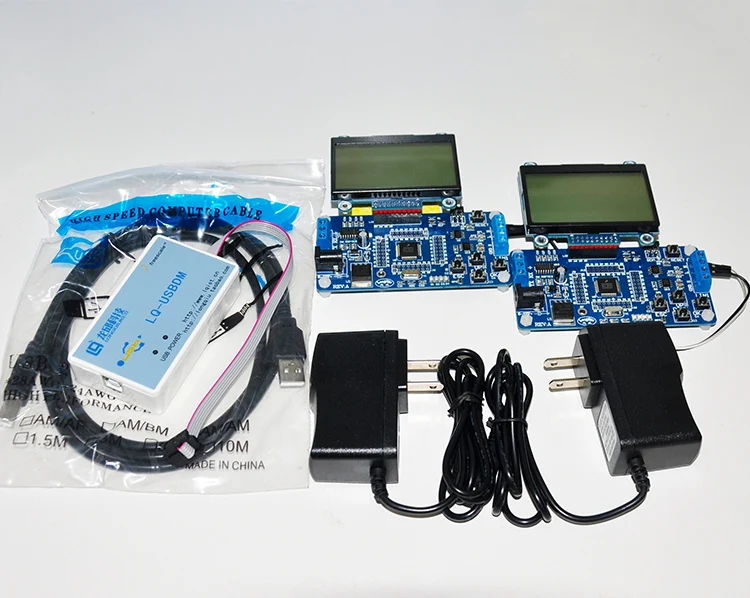

DZ60 node board large package delivery list:

• Gusset plate two;
• LCD display module (5V) two;
• 7.5V/1A power two;
• LQ-USBDM V2.3 a;
• High quality USB2.0 wire with magnetic ring 1;
• 2pin20CM double head DuPont line;
• CD data;

Special note: due to the provisions of the state electricity supplier digital products require seven days no reason to return, so the supporting schematics and source code only after the user to confirm receipt and then sent to avoid unnecessary disputes.

Gusset plateBasic function:
1 power supply with DC6~9V input voltage;
2 reset circuit (key);
3 keyboard 4 keys;
4.BDM download interface, you can choose the standard BDM downloader;
5 all functional pins through the interface;
6 can be directly inserted in the dot matrix board, all the interface in line with the specifications of the lattice, lattice spacing of 2.54mm (100mil) of the integer times;
7.PORTD has 4 bright LEDs and interfaces;
8 each board has 1 CAN bus, using TJA1040 chip, can be used as a CAN node;
9 serial interface (SCI0);
10.1 way LIN bus interface;
11 universal 128x64COG LCD interface;

12 size:53*103mm

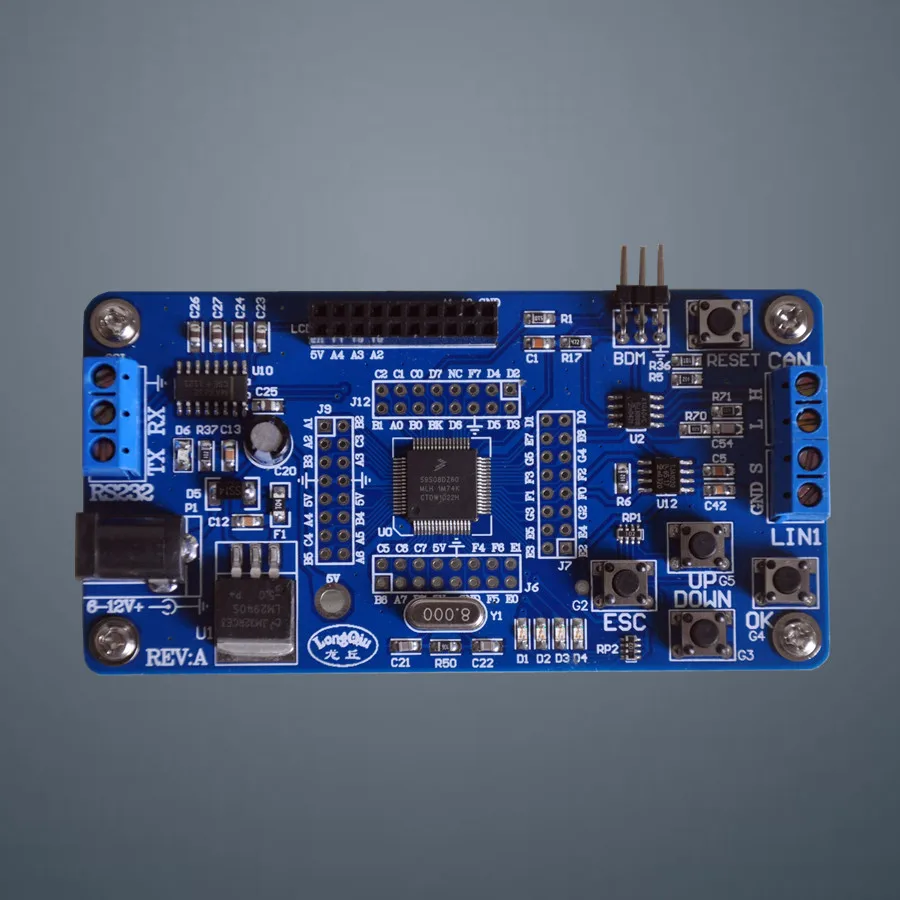

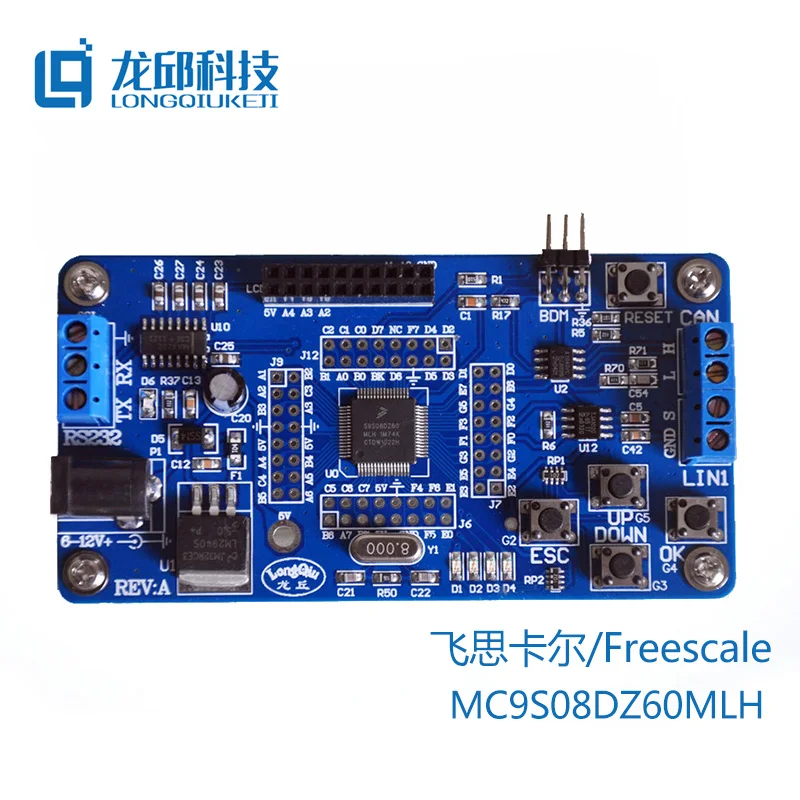

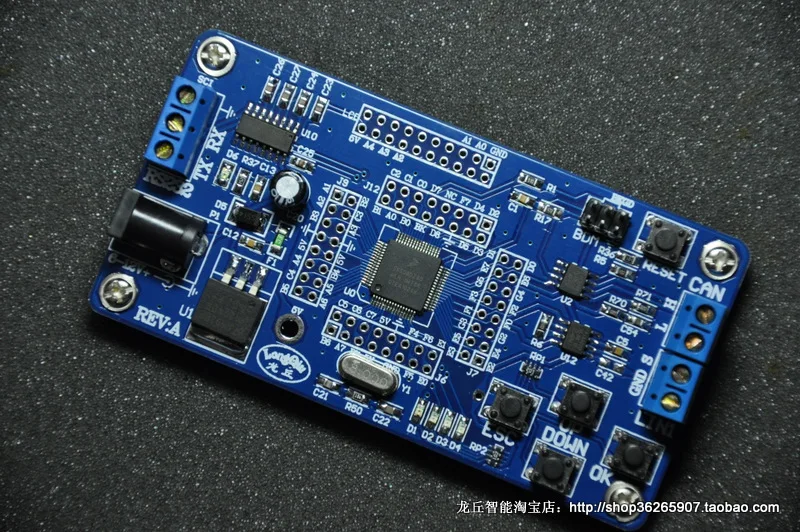

Board appearance:

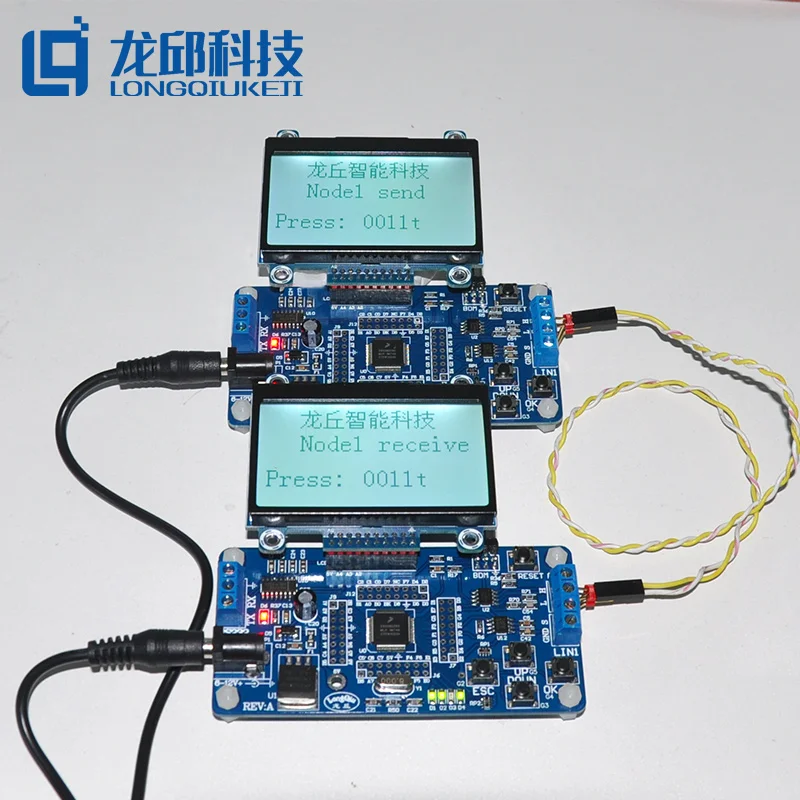

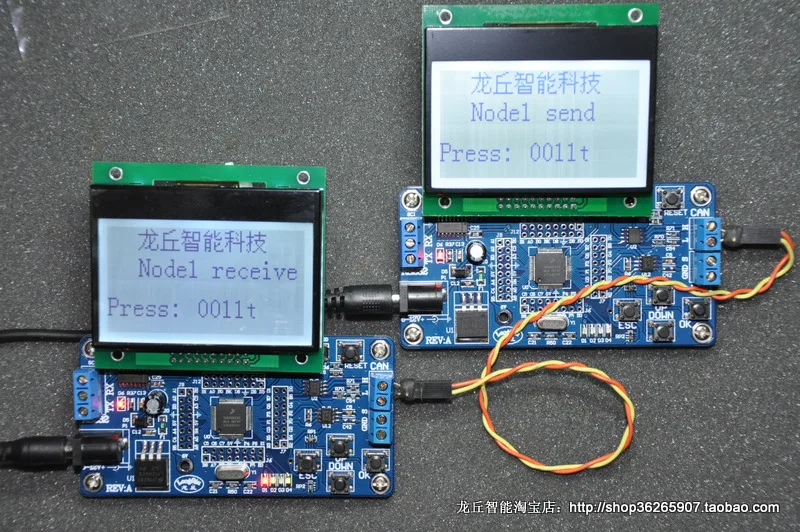

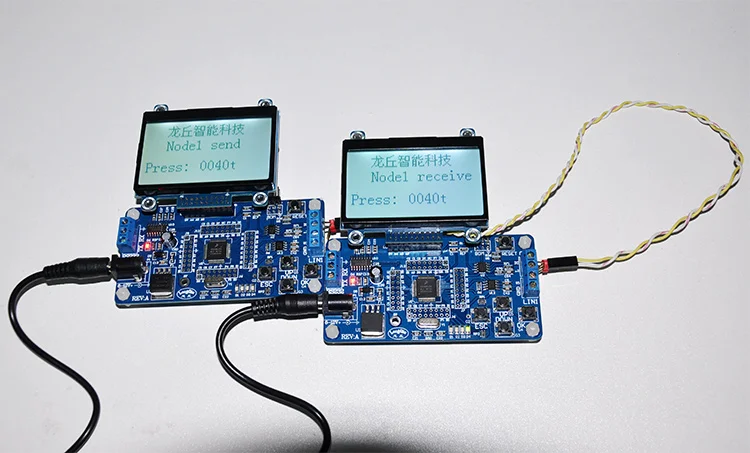

Test state:

Recommended development environment for32WIN+CW6.3

freescale.com/webapp/sps/site/prod_summary.jsp?code=CW-SUITE-SPECIAL&fpsp=1&tab=Design_Tools_Tab

Optional accessories:LCD128*64 LCD

item.taobao.com/item.htm?id=4268519739

Relevant information

CW

S08/RS08/COLDFIRE V132WIN+CW6.3;

COLDFIRE V2/3/432WIN+CW7.2;

S12/HC12WIN+CW5.1;

56800/EWIN+CW8.3;

MPC56XXWIN+CW2.10;

Although the CW10.X supports a large number of single-chip models, but unstable, unless it is not recommended!

freescale.com/webapp/sps/site/prod_summary.jsp?code=CW-SUITE-SPECIAL&fpsp=1&tab=Design_Tools_Tab
