Описание товара
Please check the following package configuration price, when the purchase please note which configuration.
Purchase configuration:
| Purchase configuration | Model | processor | Frequency | Memory | NandFlash | working temperature | Price |
| Configuration one | MYD-Y3352-256N256D-80-I | AM3352 | 800M | 256MB | 256MB | Industrial grade | 680.00 |
| Configuration two | MYD-Y3358-256N256D-100-I | AM3358 | 1G | 256MB | 256MB | Industrial grade | 680.00 |

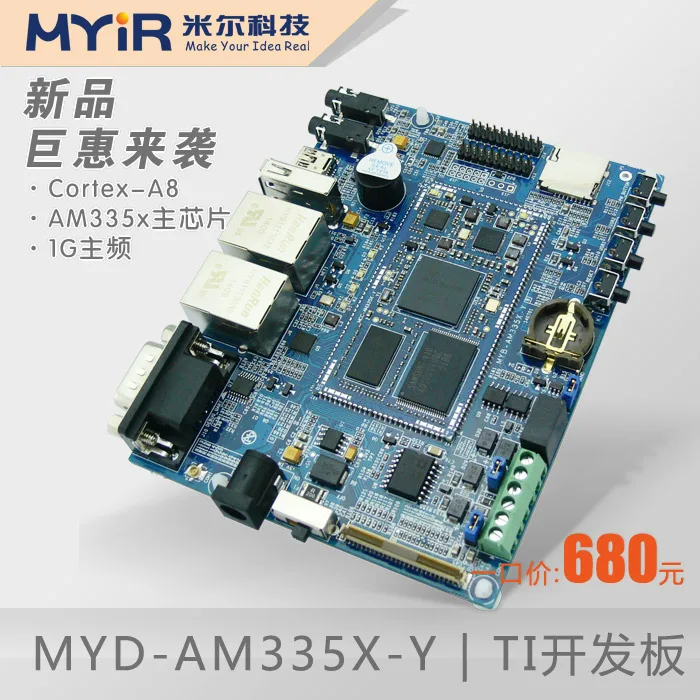

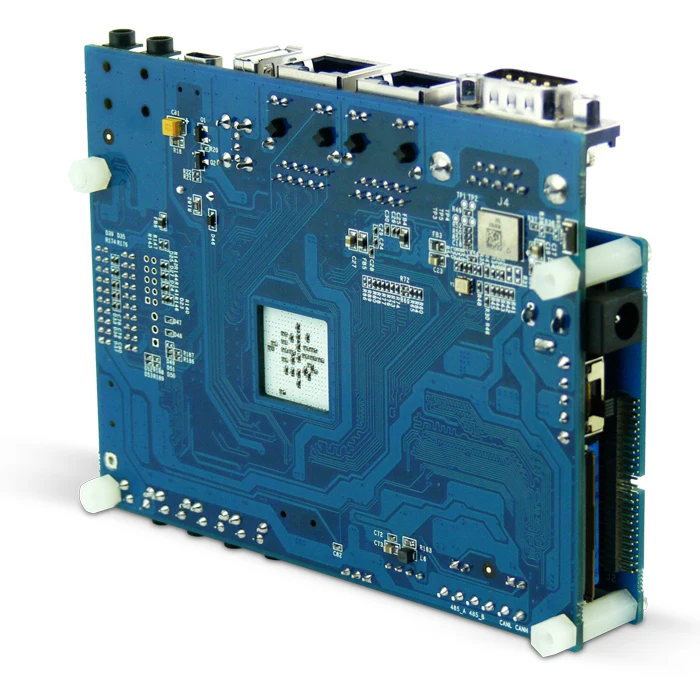

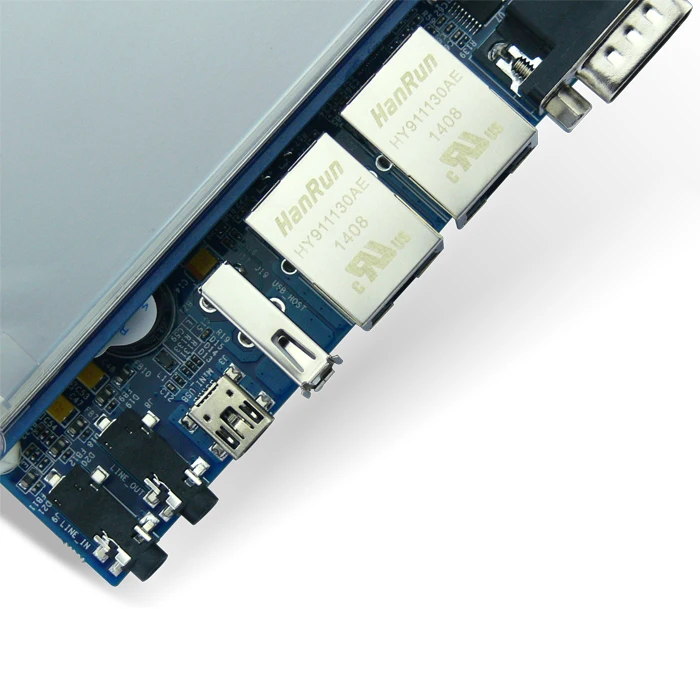

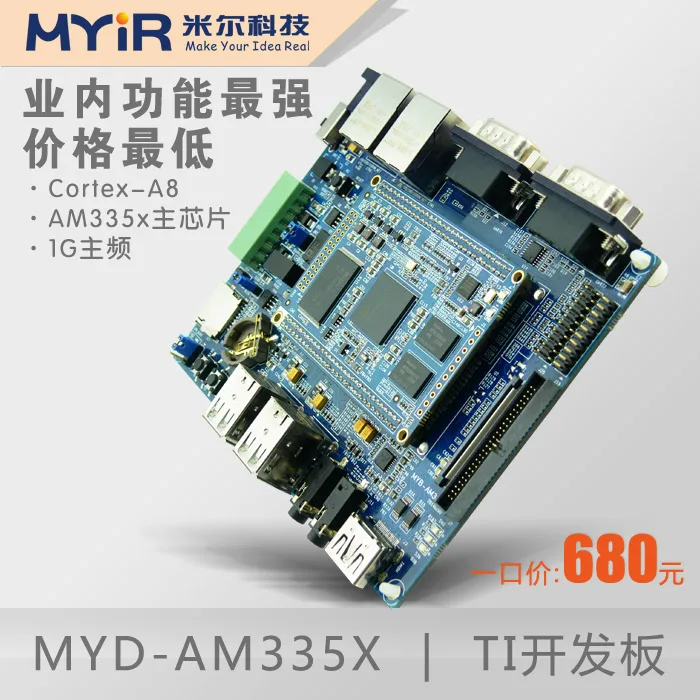

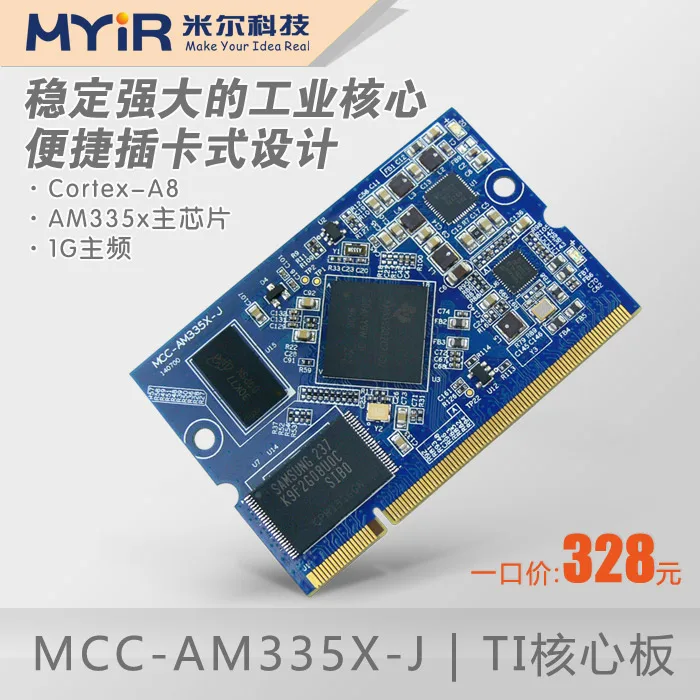

MYD-AM335X-Y is the MCC-AM335X-Y development board core board supporting the TI processor based on AM335X (AM3352, AM3354, AM3356, AM3357, AM3358, AM3359) ARM Cortex A8 core, clocked up 1GHz, DDR3 SDRAM 512MB. 256MB, NandFlash. MYD-AM335X-Y development board extends the main function of the core board, LCD interface, audio input and output interface, RTC battery, 1 RS232 serial debugging, 1 USB HOST, 1 Mini USB interface, 2 Gigabit Ethernet ports, 1 micro_SD card interface, 1 CAN interfaces, 1 RS485 interfaces. The bottom plate is connected with a wireless WIFI module, which adds more functions to the network and the application of the board. Supporting development board, software to provide Linux3.2.0, Android4.2.0 and WinCE7.0 operating system driver support. Along with the development board, including the user manual, including the user manual, PDF schematic, external expansion interface driver, BSP source package, development tools, such as the development of information. This set of development kits for the developer to provide a sound software development environment, can reduce the product development cycle, to achieve rapid product listing.
The series of products by the MYB-AM335X-Y general board and MCC-AM335X-Y series of core board, the product line includes 6 development board, respectively:
- MYD-AM3352-Y development board (based on the AM3352ZCZ company TI chip)
- MYD-AM3354-Y development board (based on the AM3354ZCZ company TI chip)
- MYD-AM3356-Y development board (based on the AM3356ZCZ company TI chip)
- MYD-AM3357-Y development board (based on the AM3357ZCZ company TI chip)
- MYD-AM3358-Y development board (based on the AM3358ZCZ company TI chip)
- MYD-AM3359-Y development board (based on the AM3359ZCZ company TI chip)

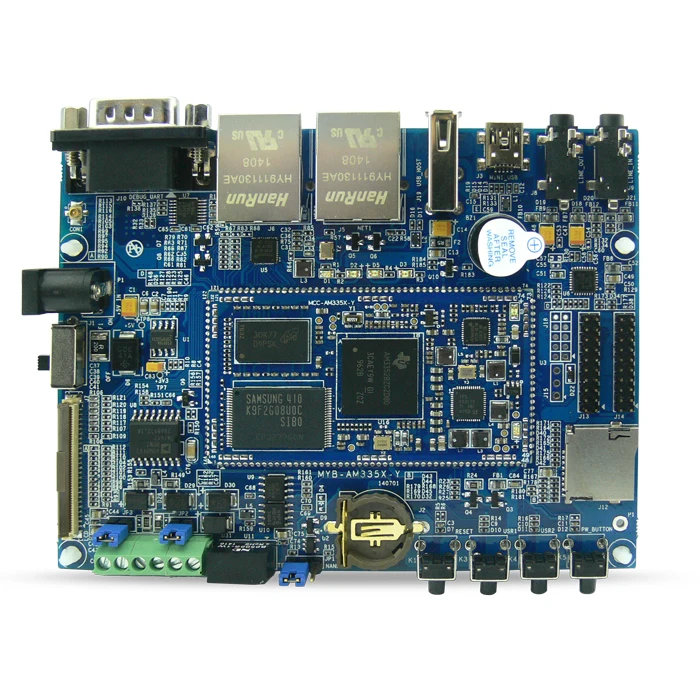

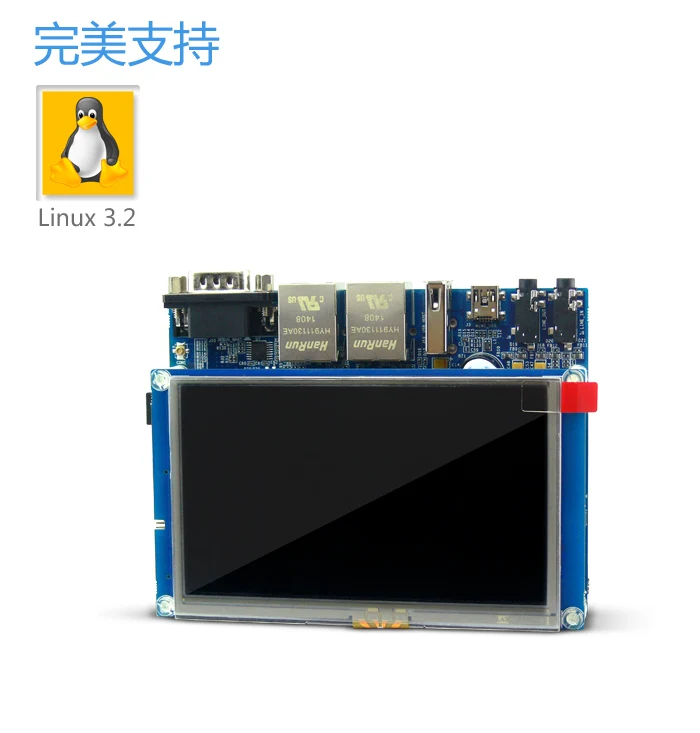

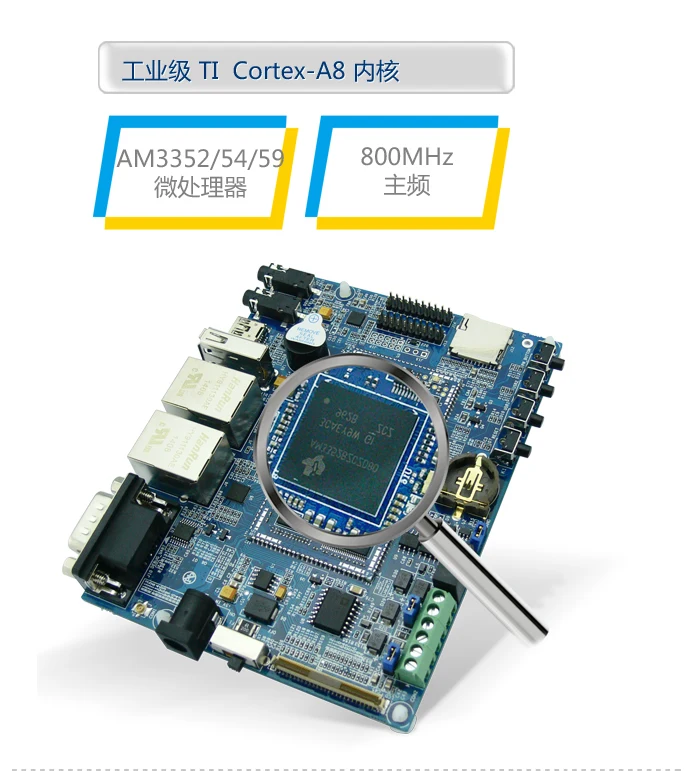

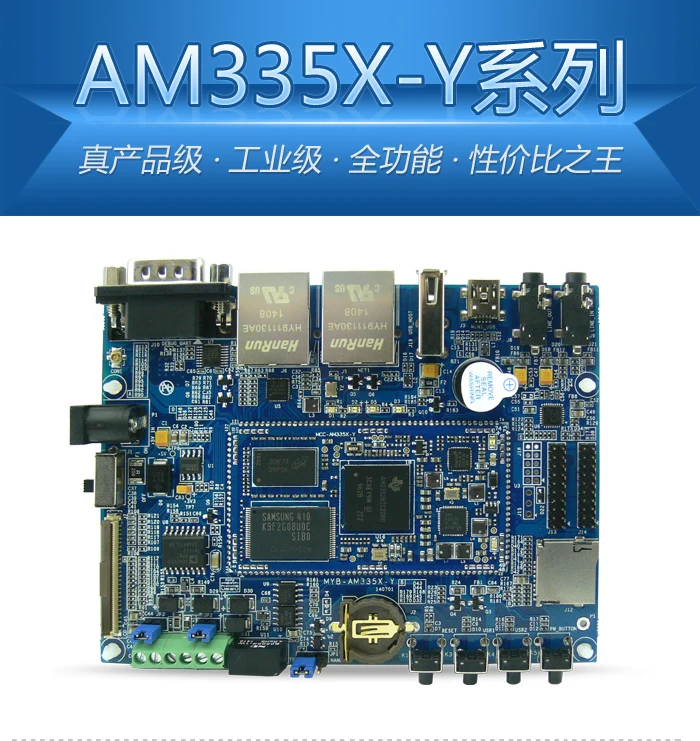

Figure 1 MYD-AM335X-Y development board
![]()
AM335X series processor
AM335X series processor| AM335x ARM Cortex -A8 Processors | |||||||||
| Feature Core | AM3352 | AM3354 | AM3356 | AM3357 | AM3358 | AM3359 | |||
| Package | 15x15mm, 0.8mm (ZCZ) | ||||||||
| Speed CPU (MHz) | 600, 300, 800, 1000 | 8001000, 600 | 600800, 300 | 600800, 300 | 8001000, 600 | 800 | |||
| Internal Memory Core | SRAM shared w/ 64KB 32KB Cache Programmable, 32KB Cache Data | ||||||||
| L2 On-chip (KB) | 256 | ||||||||
| Memory Interface External | DDR2/DDR3/DDR3L/mDDR (LPDDR), 2x16-bit, ECC NAND | ||||||||
| Graphics | - | Graphics 3D | - | Graphics 3D | |||||
| Support OS | Linux, Android, RTOS, Embedded Windows, no-OS | ||||||||
| Hardware Acceleration Other | Accelerator Crypto | Crypto Accelerator | 2 PRU-ICSS Accelerator Crypto | 2 PRU-ICSS Accelerator Crypto + Slave support EtherCAT | 2 PRU-ICSS Accelerator Crypto | 2 PRU-ICSS Accelerator Crypto EtherCAT + Slave support | |||
| EMAC 10/100/1000 | 2 switch port | ||||||||
| USB 2 OTG + PHY | 2 | ||||||||
| Ports Serial | 6 UART, 2 SPI, 3 I2C, 2 McASP, 2 CAN, 8 Timers | ||||||||
| System | EDMA, WDT, RTC, 3 eQEP, 3 eCAP, JTAG, ADC (8CH), () | ||||||||
| Parallel | 3 MMC/SD/SDIO, GPIO | ||||||||
![]()
Product function diagram
MYD-AM335X-Y development board is a feature rich development board, using the MCC-AM335X-Y core board plus the way of the floor, to provide a quick and easy way to evaluate the AM335X TI processor for Embedded designers. Is a low power consumption, low cost, high cost of development board. As shown in the following figure:

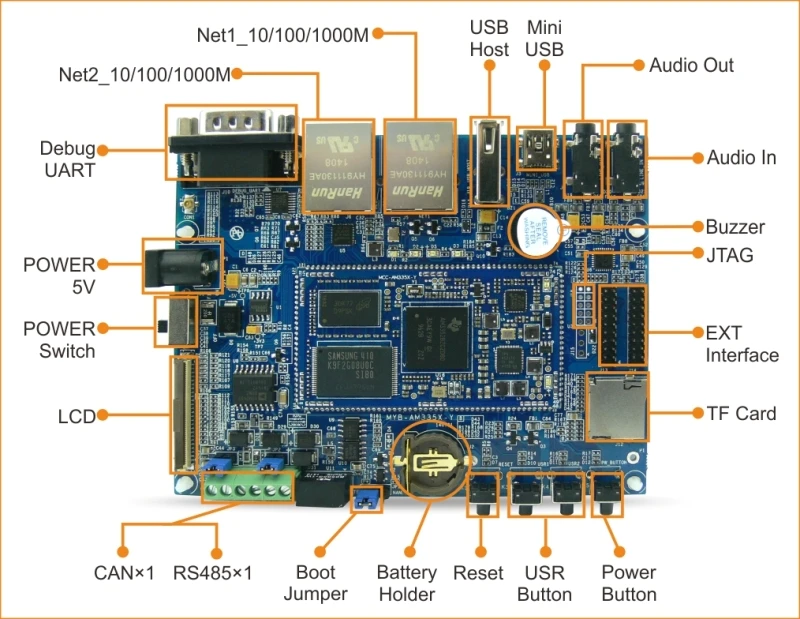

Figure 2 MYD-AM335X-Y development board feature map
![]()
Core board signal
| project | parameter |
| Net export | 2 way gigabit network port |
| USB | Can be extended to 2 independent OTG2.0 USB |
| serial port | 6 serial ports |
| I2C | Scalable 2 channel I2C bus |
| CAN | 1 way DCAN bus |
| SPI | Extensible 1 way SPI |
| ADC | 8 way ADC |
| PWM | 2 way PWM |
| SDIO | 2 way SDIO |
![]()
Peripheral resources (function list)
| project | parameter |
| audio frequency | 2 way gigabit network port |
| display | Can be extended to 2 independent OTG2.0 USB |
| USB | 1 way high speed USB interface (HOST) |
| serial port | 1 RS232 debug serial DBGU (Unit Debug), 3 lines |
| RS485 | 1 way RS485 interface |
| SD Micro | 1 way Micro SD card interface |
| CAN | 1 road |
| WIFI | 1 wireless WIFI modules |
| Ethernet | 2 way 10/100/1000Mb/s Ethernet interface |
| JTAG | 1 10-PIN, 2.0MM spacing of the JTAG port |
| User lamp | 3 user lights / system heartbeat lights |
| Key | 4 (1 reset, 2 users, 1 PWOER keys) |
| Buzzer | 1 |
| Power indicator light | 1 power indicator light (bottom plate: red) |
| User interface | 3 ADC, 1 DCAN, 2 I2C, 1 way UART |
![]()
Electrical characteristics
| project | parameter |
| working temperature | -40~+ 85 degree industrial grade |
| ambient temperature | -50 ~ 100 |
| Ambient humidity | 20%~90%, non condensing |

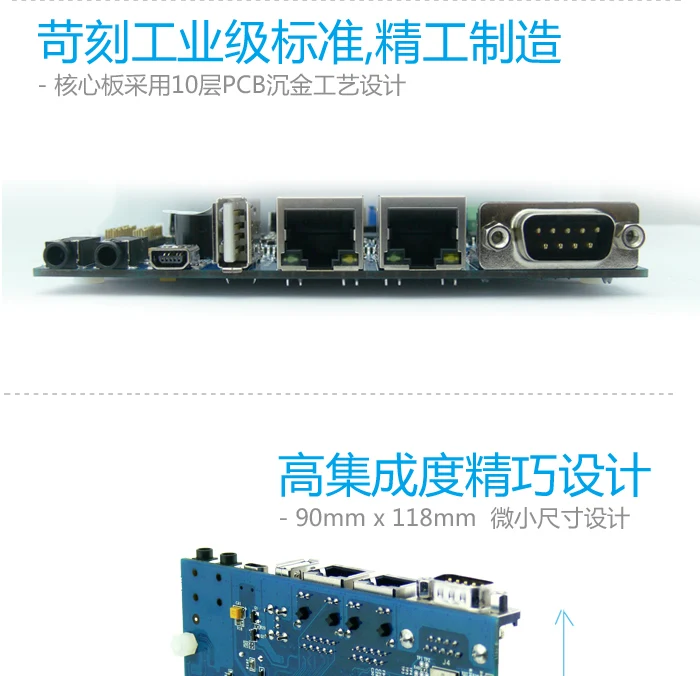

| Mechanical Dimensions | Bottom plate, X 118mm 90mm, thick 1.6mm, 200g Core board, X 65mm 35 mm, thick 1.2mm, 80g |
| PCB specifications | Floor, 4 layer, spray tin technology production, independent ground signal layer, lead free The core board, the 10 layer, the heavy metal craft production, the independent ground signal layer, lead free |
| Power supply | Floor, 5V/2A Core board, 5V/0.8A |
| Core board interface type | 146PIN stamp hole interface, spacing of 1.27MM |
| System power consumption | Floor, about 5V/2A Floor + core board, about 5V/0.26A Floor + core board +4.3 inch screen, about 5V/0.45A Floor + core board +7 inch screen, about 5V/0.88A |
![]()

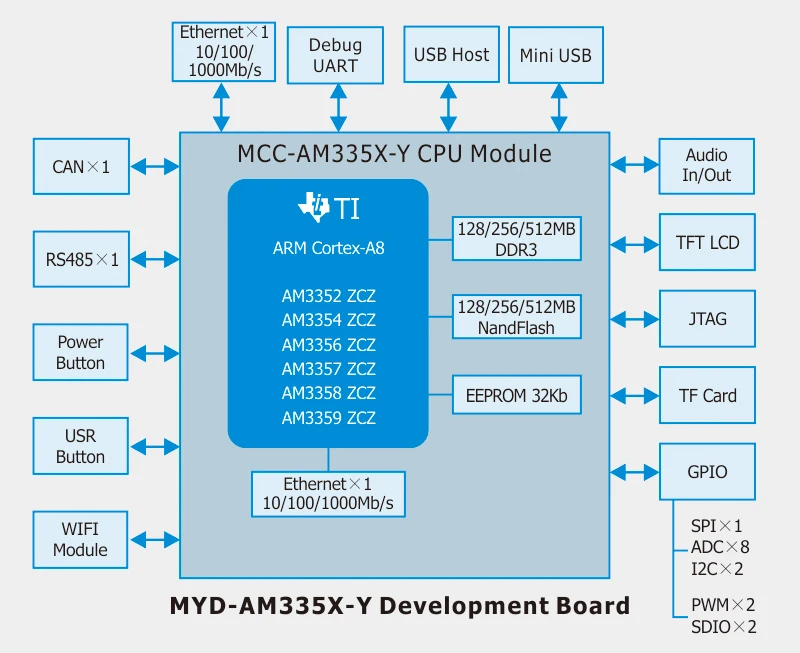

Function structure diagram
Figure 3 MYD-AM335X-Y series development function structure
![]()
Mechanical dimension chart

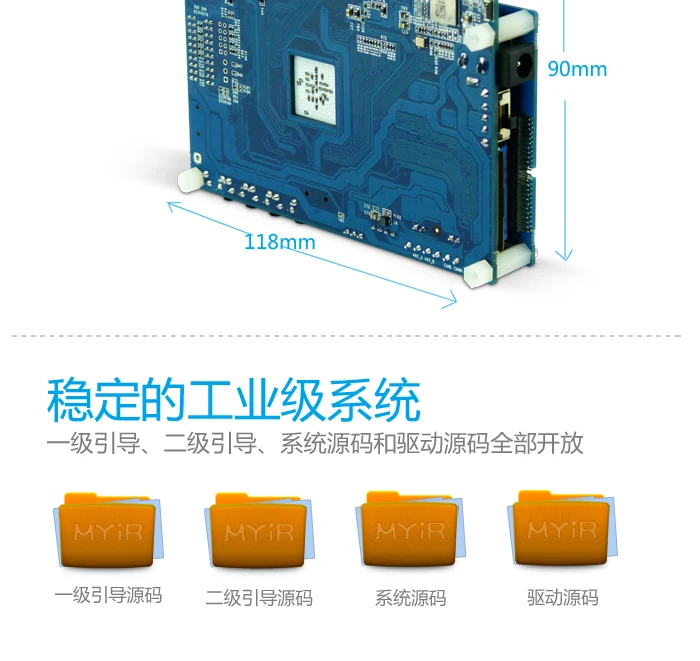

Figure 4 MYD-AM335X-Y series development board mechanical size chart
![]()
3.2.0 Linux operating system
| category | Name | Remarks |
Bootstrap program | SPL | First level to guide the program, to provide source code |
| U-boot | Two to guide the program to provide source code | |
| Linux kernel | 3.2.0 Linux | Designed for the MYD-AM335X hardware to develop the Linux kernel, to provide source code |
| drive | Host USB Device USB OTG USB | Host/Device/OTG USB driver, to provide source code |
| Ethernet | Gigabit Ethernet driver, providing source code | |
| MMC/SD/TF | MMC/SD/ TF card driver source | |
| NandFlash | NandFlash driver, to provide source code | |
| CAN | CAN driver, to provide source code | |
| RS485 | RS485 driver, to provide source code | |
| Audio | Audio driver, to provide source code | |
| Controller LCD | LCD screen driver, support 4.3 inch, 7 inch LCD screen can be extended to provide source code | |
| RTC | RTC clock driver, to provide source code | |
| HDMI | HDMI driver, to provide source code | |
| Driver Touch | Resistance touch screen driver to provide source code Capacitive touch screen driver, KO driver module to provide the document | |
| Botton | Botton driver, to provide source code | |
| UART | Serial driver, to provide source code | |
| LED | LED driver, to provide source code | |
| GPIO | GPIO driver, to provide source code | |
| WatchDog | Watchdog driver, to provide source code | |
| SDIO | Onboard WIFI SDIO driver to provide KO driver module file | |
| file system | Buildroot | Provide tar compressed package and UBI image file |
MYD-AM335X-Y series development board for embedded applications for domestic and industrial fields, including high-energy game peripherals, toys, medical devices and printers, consumer education terminal and intelligent charging system, intelligent vending machine, weighing system and other consumer product application.
![]()
Standard products
| Standard | Product name and picture | Standard | Product name and picture | ||
 | | MYD-AM335X-Y development board(1PCS) |
|  | 5V/2A DC power adapter (1PCS) |

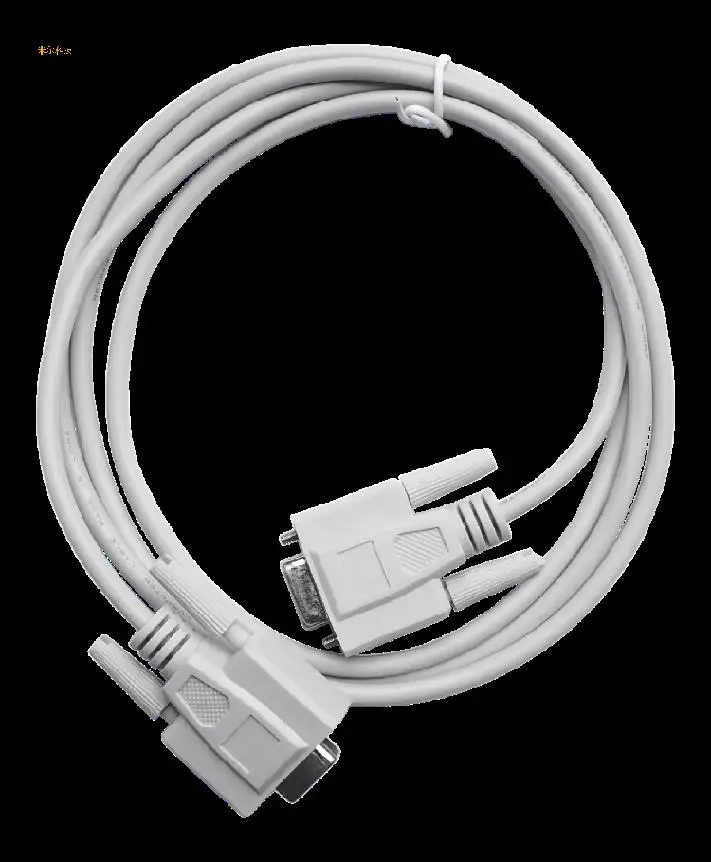

|  | 1.5 meter cross wire (1PCS) | |  | DB9 serial line (1PCS) |
|  | 1.5 m USB Mini 2 connection line (1PCS) | |  | DVD product CD (1PCS) |
![]()
Matching products
| Name | Product chart | Name | Product chart |

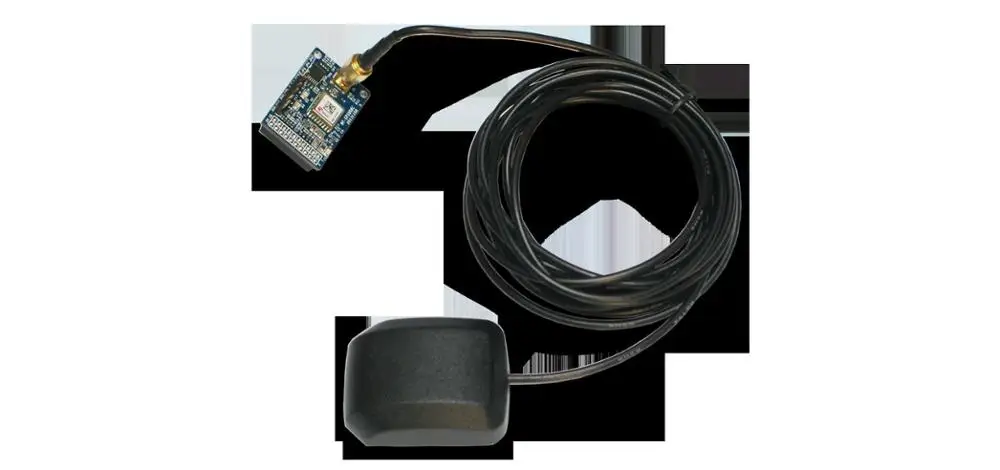

| TFT-LCD43 4.3 inch LCD touch screen |  | MY-GPS008C GPS module |  |

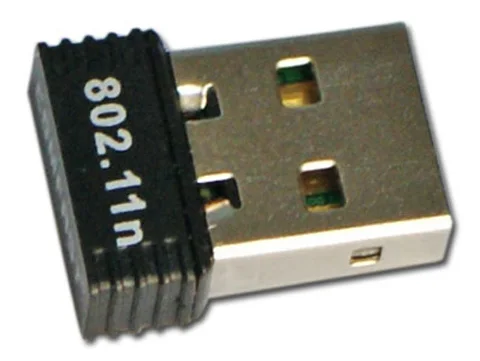

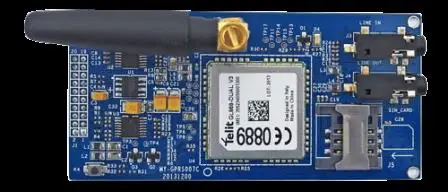

| MY-WF003U WIFI USB module |  | MY-GPRS007C GPRS module |  |

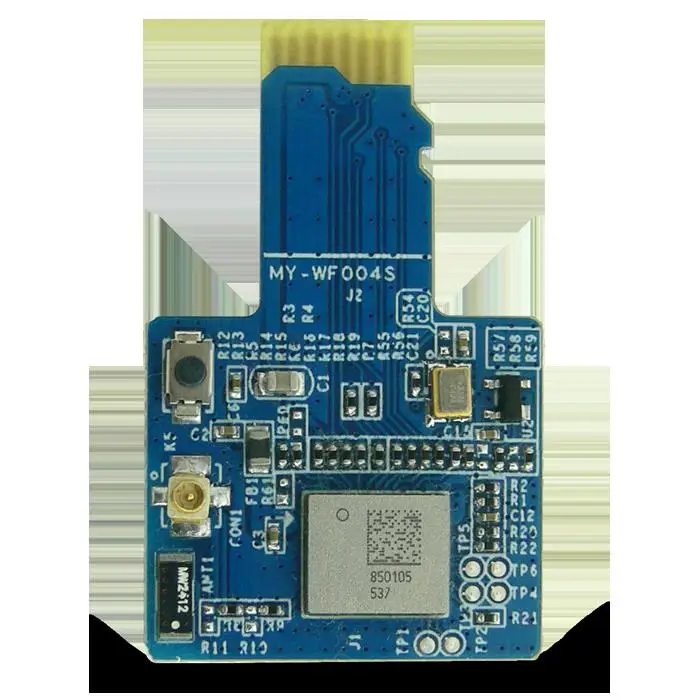

| MY-WF004S WIFI SDIO module |  | MY-CAM001U USB camera module |  |
| 7 inch capacitive touch LCD screen MY-TFT070CV2 |  | 7 inch resistive touch LCD screen MY-TFT070RV2 | |
| Optional accessory products | Alternative products of the same kind |
 |   |
