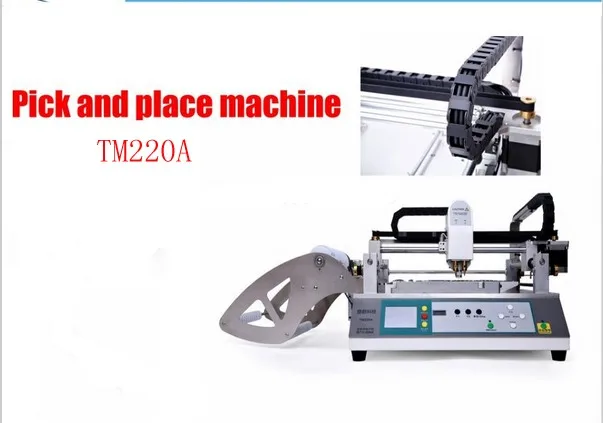

Manufacturing Supply LED Pick and Place SMT Machine 2016 hot selling Made in China Model TM220A | Инструменты

16 Pcs feeder of TM220A Model:

8mm width feeder=12 pcs, 12mm width feeder=2 pcs, 16mm width feeder=1 pcs, bulk IC=1 pcs(Suit  more than 10 pcs IC in one time)

Product Characteristic:

1) The machine have both Chinese and English version, which would be very user friendly for our foreign customers.

2) Coverfoil automated peel away device: Very convenient, and could make sure coverfoil peel away smoothly and without jerking from the tape, which could effectively prevent components jump out of the tape and jam the machine.

3) With 2 placement heads: 2 components could be picked and placed at the same time at every working stroke of the machine.

4) Could place components on the correct footprints with 360 degree orientation, and with required precision.

5) Automatic vacuum detection function, which could automatically recognize missing components, and remind user timely.

6) Could handle the mounting for 0402 and IC components with required precision, even without vision system. The self-developed Laser positioning principle is quite effective for this type of machine.

7) Self developed Software operating system which is integral to the machine, no need to (and can not) attach to a separate computer. 8G SD Card would be big enough for you to setup hundred thousands files.

8) Integrated type of feeders: No need to buy extra mobile feeder arrays, which is quite cost saving.

9) Feeders are mechanized to automatically present the next component after the preceding one has been collected.

10) Easy and storability of programming, and high speed of changeover from one placement program to another.

11) The programming process is very simple and quick: use Protel tool to extract the PCB circuit coordinate file, and use the format transformation tool we provided to you to transform the file format, and then copy to the SD card, insert to the machine, then you could use the file directly.

12) Online programming function: could easily online programming if you don’t have PCB Circuit diagram.

13) Small and lightweight: simple installation, convenient transportation.

14)Working power 100W: Environmental protection and energy saving.

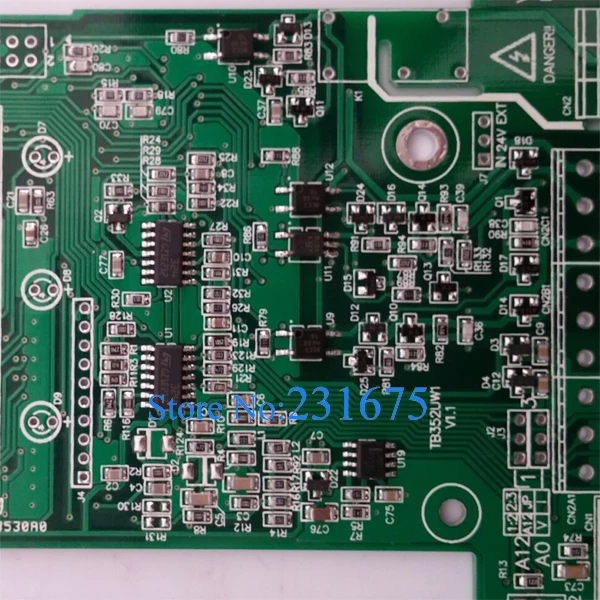

Mounting Effect:

Videos:

//www.youtube.com/channel/UCe5FjacDVT42MxKF2Q6Z9OQ/videos?view=0&sort=dd&shelf_id=0

Standard Accessories:

1)     Pick and Place Machine TM220A: 1

2)     4 types of nozzle: Totally 6 (XS—2, S—2, M—1, ML—1).

3)     8G SD Card: 1

4)     Card reader: 1

5)     Nozzle disassembly tool: 1set

6)     Adjustment tool for Nylon Spool Wheel: 1

7)     Nozzle cleaning tool: 1 set

8)     User manual: 1

9)     Video training course: 1 set

10)   PCB Coordinate file transformation tool: 1

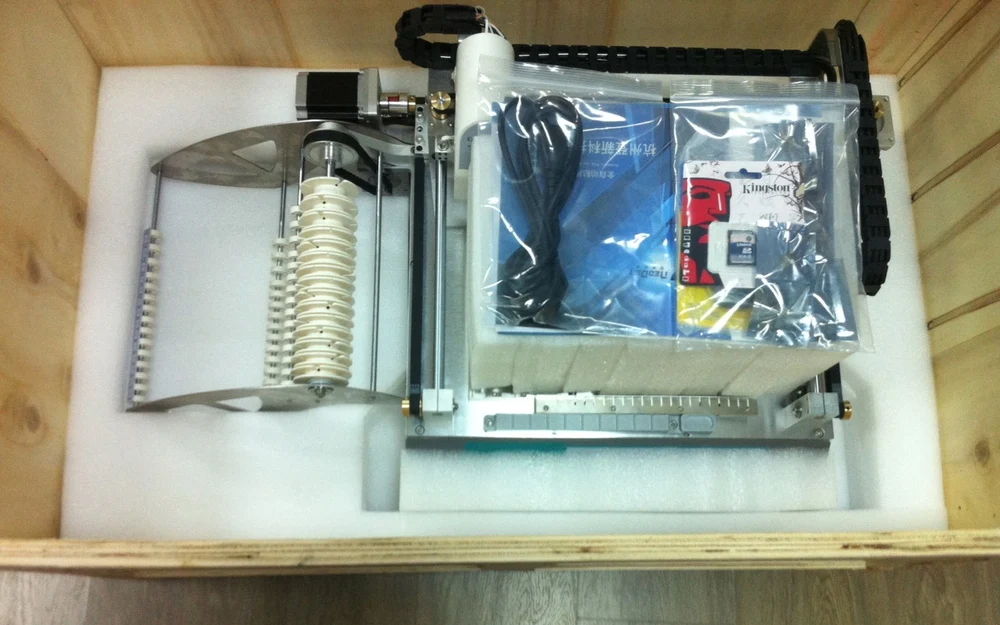

Export Stand Package:

Payment & delivery:

1) Payment terms: T/T, Western Union,Papyal,Ali-Express,China Yuan(RMB)

2) Payment method: 100% prepaid before shipment.

3) The default delivery method is by air via DHL (door to door), unless specific requirement from customer.

4) Delivery time: Ready stock, 5 working days.

Warranty:

The complete machine has a Overseas warranty period of 1 year from the time of purchase and lifelong service support as well as a long-term factory price supply. We provide online Q/A and troubleshooting support and technical advice service.
