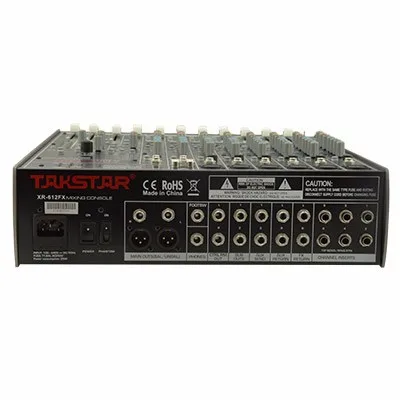

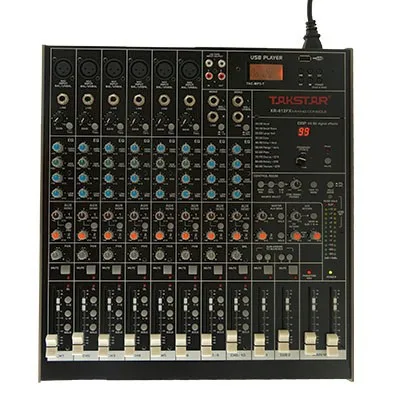

New Takstar xr-612fx for Mixer Console 6 XLR and TRS balanced inputs stereo input interface XR-612FX MIXER USB | Электроника

---



Characteristic • 6 x XLR and TRS balanced inputs • Stereo balanced TRS input interface • Gain control box + 48V phantom power • Single-channel 3-band EQ, stereo 4-band EQ • 2 auxiliary transport: auxiliary transport AUX1 with PRE / POST switch is used to switch from the fader control or by fader control, auxiliary transport AUX2 by fader control, monitor DSP effects • Each input channel has a mute switch, monitor switch and the corresponding LED lights • Channel with SUB1 ~ 2 and MAIN L-R distribution switch • CD / Tape IN can monitor distribution of the main output or output • Listen before attenuation attenuation, the two control signal paths in different ways • Balanced XLR and TRS outputs • 24 bytes of internal effects with 100 presets, quietness and peak LED lights   Range : Home entertainment, business performance, large gatherings, outdoor   Parameter Input channel • Microphone Input: Balanced XLR jack • Frequency Response: 20Hz to50 KHz ±± 3dB • Distortion: <0.005% to ± <= 4dBu, 1KHz • Gain Range: 0dBa50 dB MIC • SNR: <- 100dB • Phantom Power: + 48V phantom power switch • Linear Input: Balanced 1/4 "TRS jacks • Frequency response: 20Hz to +50 KHz ± 3dB • Sensitivity: + 15dBu ± 3dB Impedance • Microphone input: 1.4 Ohm • Other Input: 10K Ohm • Tape Output: 1k Ohm • Other output: 120 Ohm EQ Single Channel • High EQ ± <= 15dB @ 12KHz • EQ ± <= 15dB in the frequency range of 100Hz to 8KHz • Low EQ ± <= 15dB @ 80KHz Stereo channel • High EQ ± <= 15dB @ 12KHz • High EQ ± <= 15dB @ 3KHz • Low EQ ± <= 15dB @ 500KHz • Low EQ ± <= 15dB @ 80KHz DSP section • voltage converter: 24 Bit • DSP Resolution: 24 Bit • Effect Type: Vocal, Small Room, Large Hall, Echo, Echo + Verb, Flanger + Verb, Chorus GTR, Rotary GTR, Tremolo GTR • Preset: 100 • control: 100 preset selection (10 Presets, 10 Variations) mute switch with indicator light Part of the main mix • Bus noise: Fader 0dB, mute -82dB, -70dB overall gain for all input channels • auxiliary transport maximum output: ± 22dBu unbalanced, 1 / 4jacks Gain range auxiliary transport: -∞ to + 15dB USB input • Built-in USB full-speed (12Mbps) • USB storage • FAT decomposition: Supports FAT & FAT32 / support VFAT (long file name) MP3 decoding • Supports sampling rate 8KHz, 16KHz, 32KHz, 11.025KHz, 22.05KHz, 44.1KHz, 12KHz, 24KHz, 48KHz • Support for 8 to 320 bytes rate, support byte variable rate, but does not support arbitrary format decoding Electrical Specifications • Frequency Response: 20Hz ~ 20KHz • SNR:> 90dB • 1KHz distortion: <0.04% Power supply • Main Voltage: 100-240V ~ 50 / 60Hz • Fuse: 1.6AL AC250V   Configuration   XR-612FX 1PCS Power cable 1PCS
