CNC Router Milling 2.2KW Water Cooled Spindle Motor Kit 220V + HY Inverter VFD 80mm Fixture | Machine Tool
История изменения цены
*Текущая стоимость 46470.96 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-26-2026 | 55299.2 руб. | 58064.6 руб. | 56681.5 руб. |
| Feb-26-2026 | 54835.0 руб. | 57577.42 руб. | 56206 руб. |
| Jan-26-2026 | 46005.94 руб. | 48305.26 руб. | 47155 руб. |
| Dec-26-2025 | 53905.98 руб. | 56600.42 руб. | 55252.5 руб. |
| Nov-26-2025 | 46935.36 руб. | 49282.35 руб. | 48108.5 руб. |
| Oct-26-2025 | 52976.46 руб. | 55625.68 руб. | 54300.5 руб. |
| Sep-26-2025 | 52511.51 руб. | 55137.32 руб. | 53824 руб. |
| Aug-26-2025 | 52046.59 руб. | 54648.5 руб. | 53347 руб. |
| Jul-26-2025 | 51582.32 руб. | 54161.36 руб. | 52871.5 руб. |
Описание товара
Brand NameNoneModel Number2.2KW inverter & water-cooled spindleOriginMainland ChinaCertificationCEApplicationEngravingDriveMotorOperating Speed24000rpmMeasurement unitpiece/piecesEach pack1Frequency400HzLubricationGreaseType2.2KW inverter & water-cooled spindleCoolingWater-cooledVFD Power2.2KWColletER20Bearing3pcs(C7005x2+C7002x1)Motor Size80x213mmFixture80mmMotor Voltage220VNot availableNot available
Description

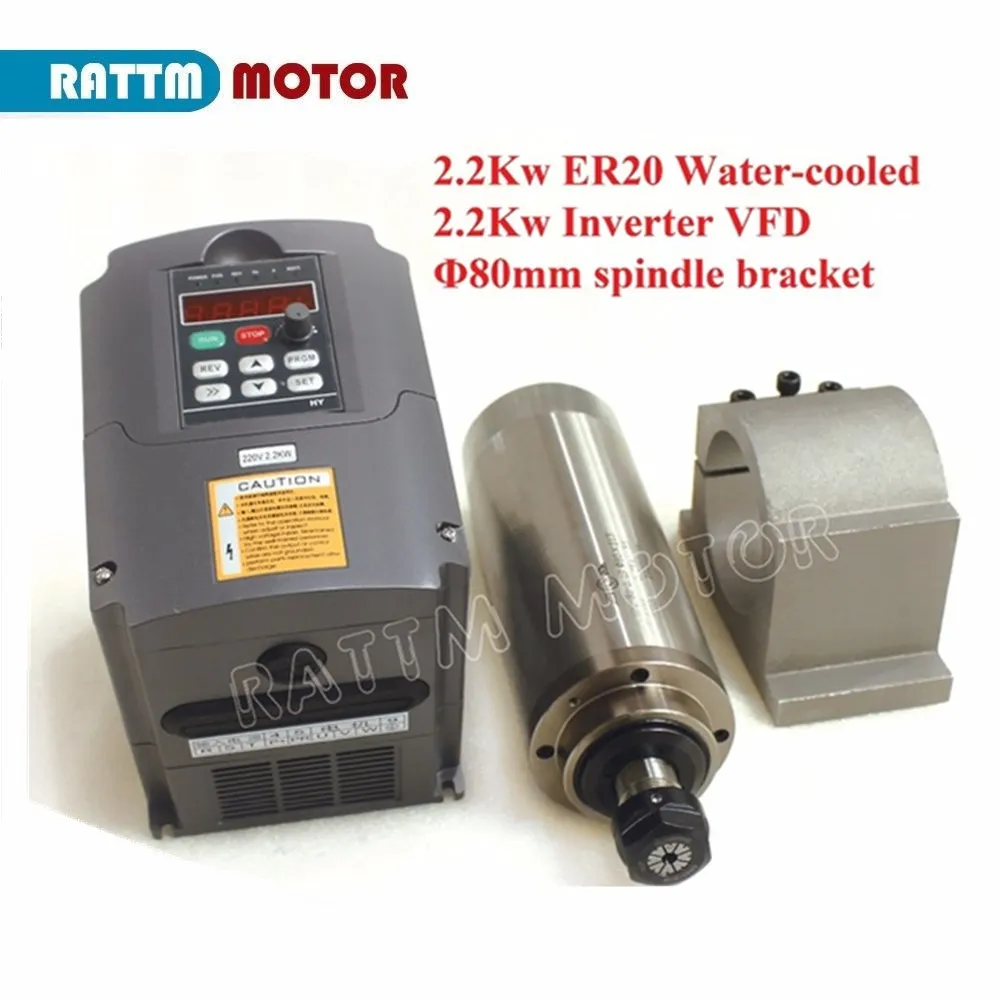

1 x 2.2KW ER20 Water-cooled spindle motor
1 x 2.2KW 220V VFD Inverter 2HP
1 x 80mm spindle bracket
2.2KW WATER-COOLED SPINDLE MOTOR ENGRAVING MILLING GRIND
Specification:
Material: Stainless Steel
Size: Φ 80x213mm(Middle body diameter:80mmxLength:213mm)
Power: 2.2Kw
Voltage: 220VAC
Current: 8A
Frequency: 0-400Hz
Speed: 10-24000rpm
Cooling: Water-cooling
Precision tapered bore: 0.01mm
Runout off: Less than 0.02mm
Bearing Lubrication: Grease
Collet size:ER20
Bearings: 3 bearings(C7005x2 + C7002x1),P4 class
Net Weight: 5.1kg
Power supply interface: Professional
aviation Interface, Interface 1234 marked 123 respectively connected to
the inverter output end of the (U, V, W), 4 ground wire this interface
must be safe ground.
Main application: Wood, Aluminum, Stone, metal, glass, PVC industry
2. 2.2kw Inverter VFD
ProductFeature:
1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;
2)Easy PLC function can realize 16 legs of speed and inverter control function;
3)RS485 communication port, adopting standard international MODBUS main circuit control;
4)With extremely strong anti-jamming capability
5)Low output ratting torque0.5HZ-150%, low speed running ability;
6)Carrier adjustable by 16KHZ, completely soundless working environment;
7)Broad voltage working area, normal running in 304V-456V;
8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
9)Various
control technique by both synchronization and non-synchronization,
dynamically realize fast starting without changing brakes;
10)With perfect error protection and short circuit starting protection capability;10)With perfect error protection and short circuit starting protection capability;
Tech parameters:
1) Input Voltage: 220V(+/-15%)
2) Output Voltage: 220V(+/-15%)
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase: 1 or 3 phase
6) Output Phase: 3 phase
7) Warranty: 1 year from the date you purchased
Specification
Series | HY inverters | |
Control ModeControl Mode | SPWM | |
Input Power | 380V class:380V(+/-15%);220V class:220V(+/-15%) | |
5-Digits Display & Status Indicator Lamp | Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc. | |
Communication Control | RS-485 | |
Working Temperature | -10~40 Celsius Degrees | |
Humidity | 0-95% Relative Humidity(without dew) | |
Vibration | Below 0.5G | |
Frequency Control | Range | 0.1~2500.0Hz |
Accuracy | Digital: 0.1%(-10~40 Celsius Degrees); Analog: 0.1% (15Celsius Degrees---45Celsius Degrees) | |
Setting Resolution | Digital: 0.1Hz; Analog: 0.1% of max. Operating frequency | |
Output Resolution | 0.1Hz | |
Operator Setting Method | Press directly keys to set. | |
Analog Setting Method | External Voltage 0-5V,0-10V,4-20mA,0-20mA. | |
Other Functions | Frequency lower limit, starting frequency, stopping frequency, three skip frequencies can be respectively set. | |
General Control | Ramp Control | Selectable 4-speed steps ramp-up and -down time (0.1-6500s). |
V/F Curve | Set V/F curve at will. | |
Torque Control | Torque increase settable by max. 10.0%. The starting torque can reach 150% at 1.0Hz. | |
Multi-Inputs | 6 | |
Multi-Outputs | 5 | |
Other Functions | Auto | |
Protection Functions | Overload Protection | Electronic relay protection motor drive Drive(for constant torque 150% per min. for the kinds of fan 120% per min.) |
FuseProtection | When the fuse breaks, the motor will stop. | |
Over-voltage | 220V class:DC Voltage >400V 380V class:DC Voltage >800V | |
Under-voltage | 220V class:DC Voltage <200V 380V class:DC Voltage <400V | |
Restart After Instant Stop | Restart with Frequency Track after Instant Stop | |
Stall Protection | Stall protection in ramp operation | |
Output Short Circuit | Electrical circuit protection | |
Other Functions | Fin | |
3. 80mm cast aluminium bracket
