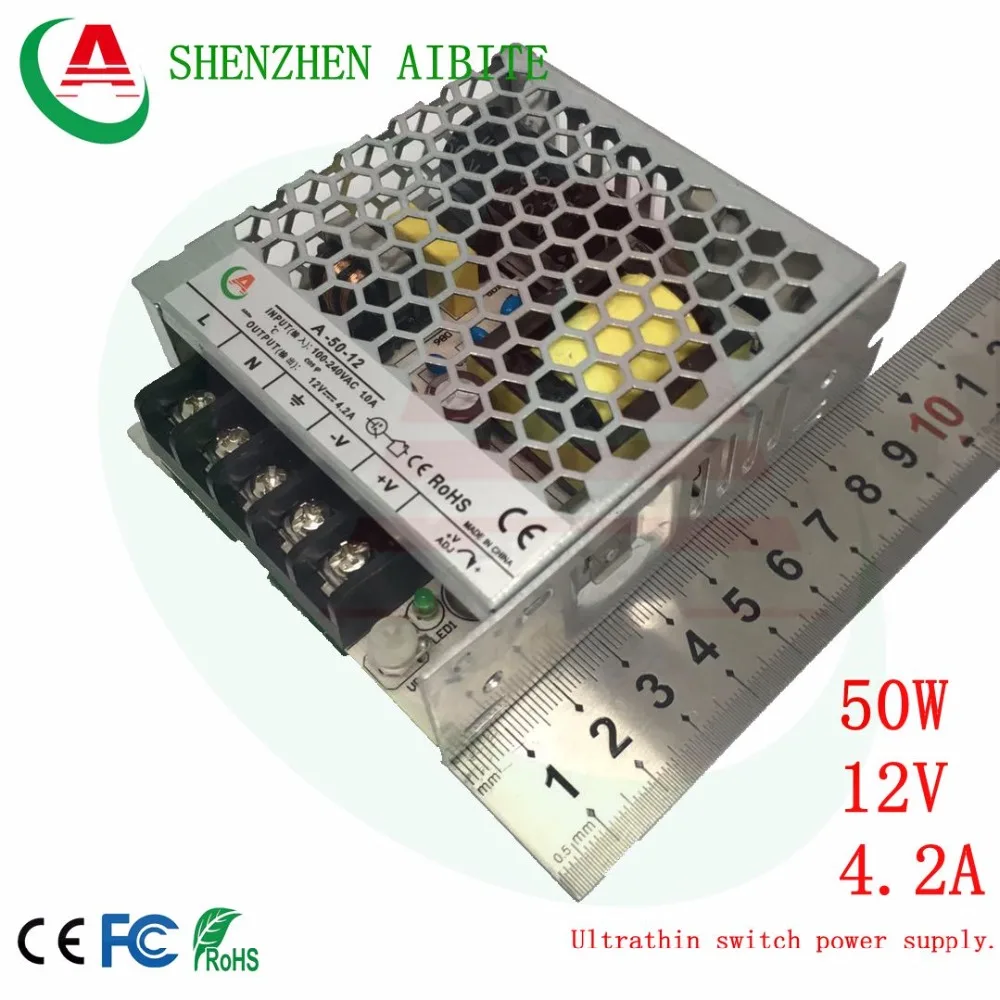

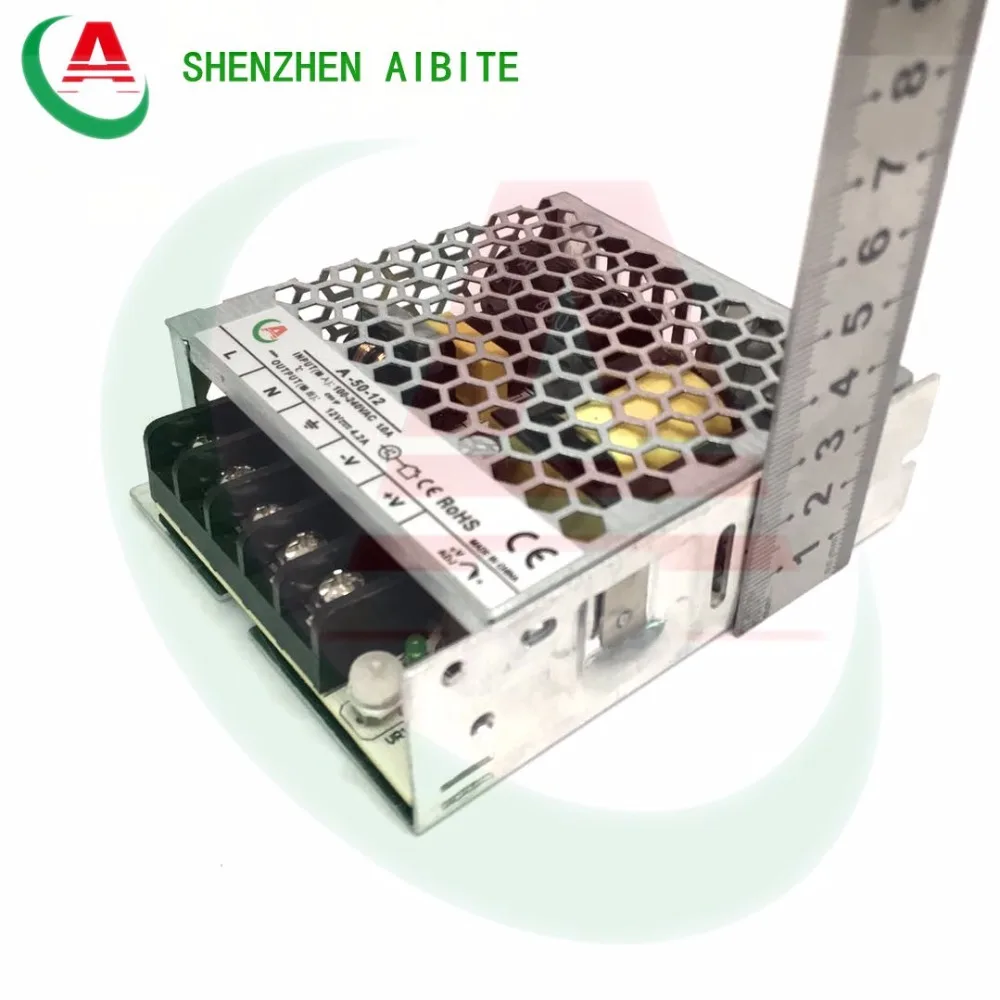

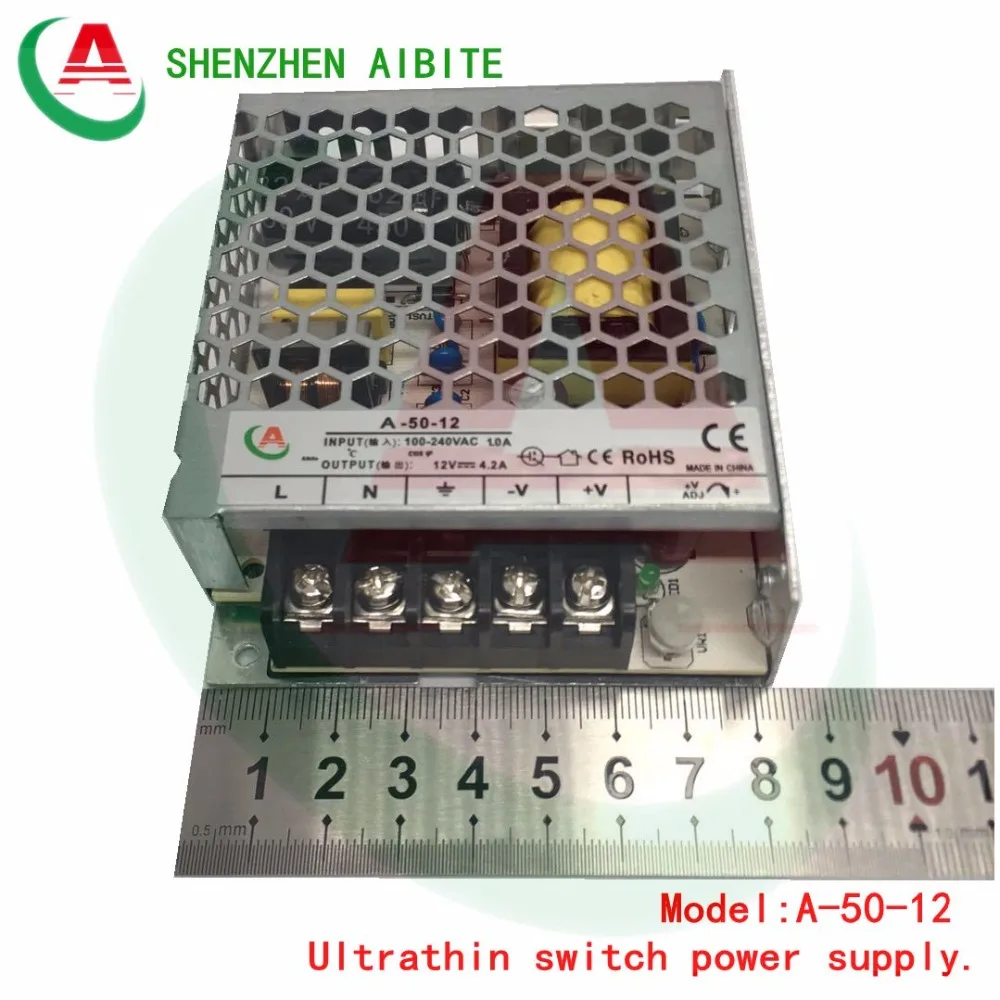

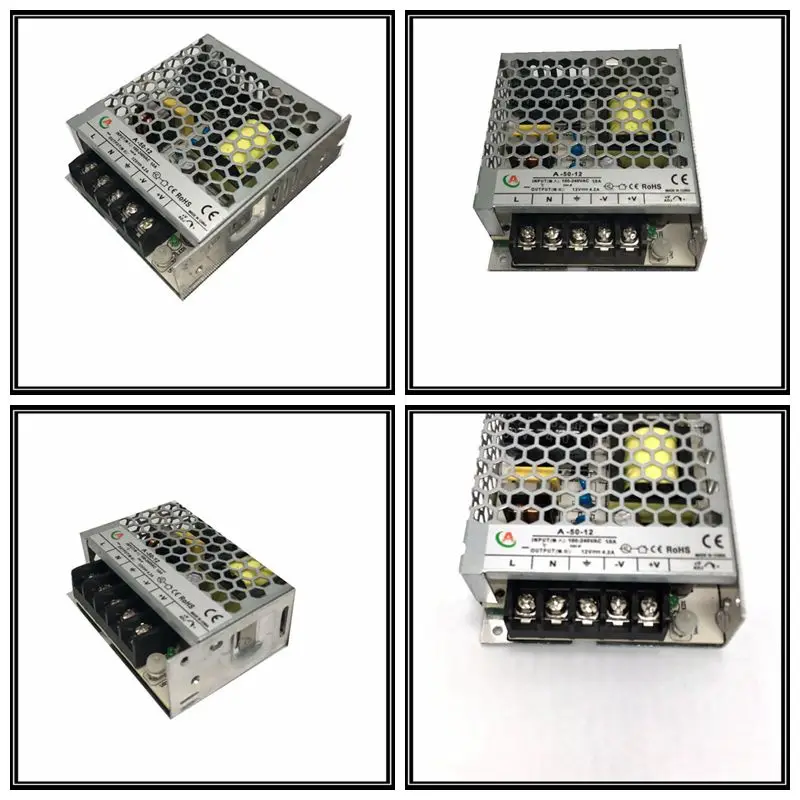

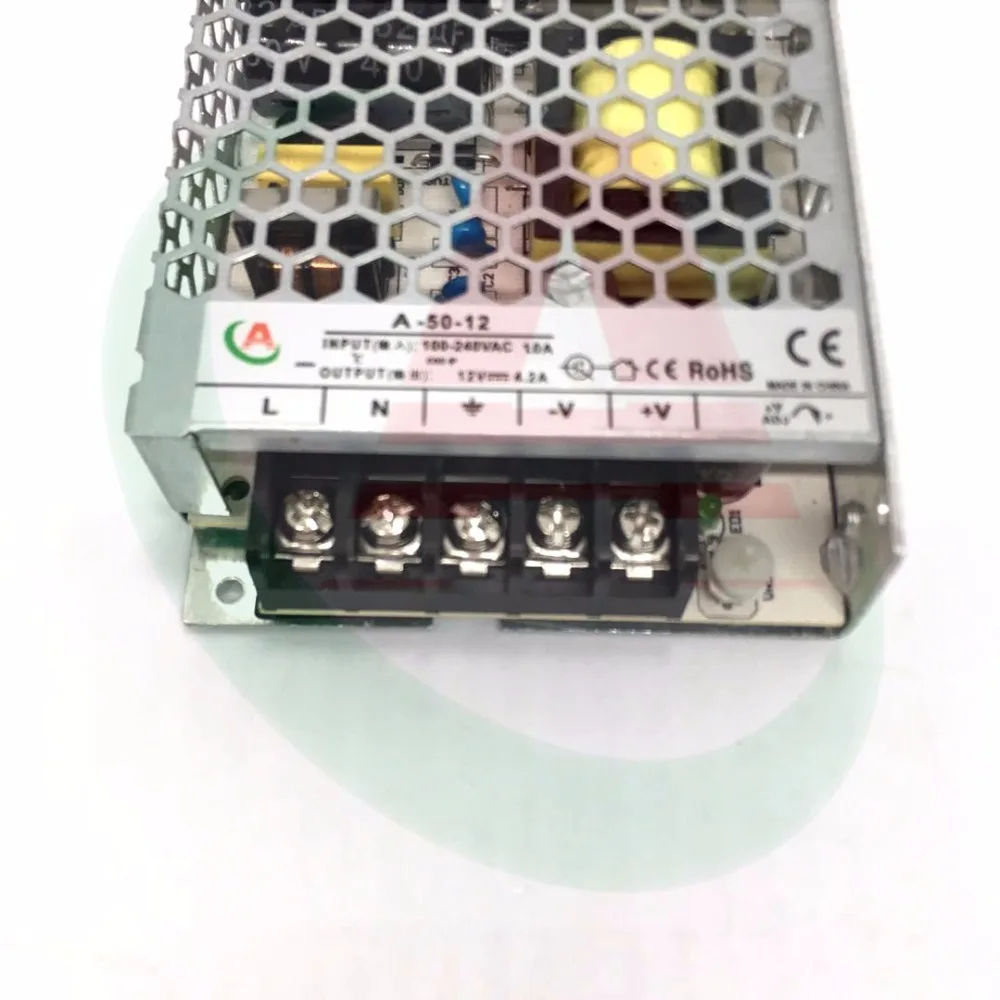

Ultrathin 12V 4.2A Power Supply 50w Led Driver 12v Indoor switch power supply 220V | Обустройство дома

---

Notice

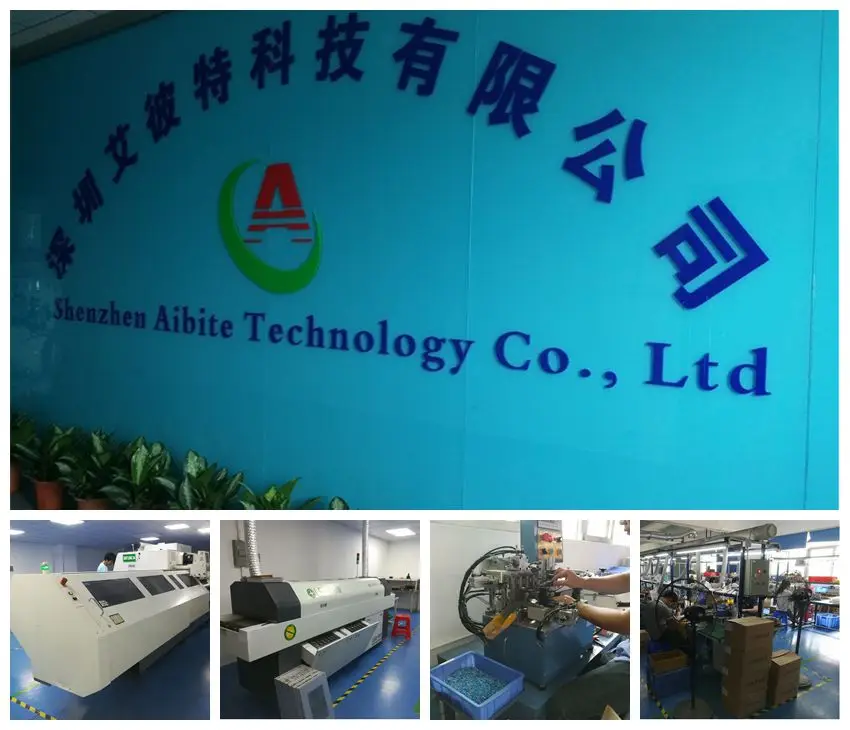

we are factory , almost products producted by ourself .

Product order will be shipped as soon as possible, please be patient.

According your order , we will select same delivery time but more convenienter Shipping Company for you .

if you have any needs please communicate with us .

please refer to the following when buying.



MODEL NUMBER		A－50－5	A-50-12	A-50-15	A-50-24
OUTPUT	DC VOLTAGE	5V	12V	15V	24V
	RATED VURRENT	10A	4.2A	3.4A	2.2A
	CURRENT RANGE	0-10A	0-4.2A	0-3.4A	0-2.2A
	POWER RATING	50W
	RIPPLE AND NOISE(MAXIMUM)	50mVp-p	100mVp-p	100mVp-p	100mVp-p
	VOLTAGE ADJUSTMENT RANGE	4.75-5.3V	11.4-12.6V	14.25-15.75V	23-25V
	VOLTAGE PRECISION	±5%
	LINEAR ADJUSTMENT RATE	±5%
	OAD REGULATION	±5%
	SETUP RISE HOLD UP TIME	1000ms,30ms/230VAC/110VAC
	RETENTION TIME（Typ.）	50ms/230VAC 110V10ms
INPUT	VOLTAGE RANGE	90-264V
	FREQUENCY RANGE	47～63HZ
	PRODUCTIVENESS（Typ.）	82%	85%	86%	88%
	ALTERNATING-CURRENT（Typ.）	1A/100V 0.38A/240V
	SURGE CURRENT（Typ.）	cold boot ：45A/230VAC
	LEAKAGE CURRENT	<2mA/240VAC
PROTECTION	OVER LOAD PROTECTION	Larger than rated output 130%
	OVER-VOLTAGE PROTECTION	6～7.5V	14.4～18V	18～22.5V	28.8～36V
ENVIRONMENT	ENVIRONMENT	indoor
	WORKING TEMPERATURE	-20～+60℃
	WORKING HUMIDITY	20～90%RH,No condensation
	STORAGE TEMPERATURE,HUMIDITY	-40～+80℃
	TEMPERATURE COEFFICIENT	±0.03%/℃
	VIBRATION RESISTANCE	10～500HZ,5G 10 minutes / cycle，X,Y,Z60 minutes for each axis
SAFETY AND ELECTROMAGNETIC COMPATIBILITY	SAFE CODE	GB195110.1-2004/IEC61347-1:2003 CE(EMC+LVD)
	WITHSTAND VOLTAGE	I/P-O:1.5KvAc I/P-FG:1.5KvAc O/P-FG:0.5KvAc
	INSULATION IMPEDANCE	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/70%RH
	EMC EMISSION	EN55015:2006;EN61000-3-2:1995+A2:2005
	ELECTROMAGNETIC COMPATIBILITY IMMUNITY	EN61000-3-2:2006;
OTHER	SIZE	99*82*30mm（L*W*H）
	PACKING	0.22KG/PCS;80PCS/17.6KG
REMARKS	1. If not specified, all specification parameters are tested at ambient temperature of 230VAC, rated load, 25 ℃.
	2. ripple and noise measurement method: suitable for a 12 "double ripple line with terminal parallel capacitance of 0.1F and 47F, measured at 20MHZ bandwidth
	3.accuracy: includes setting error, linear adjustment rate and load adjustment rate
	4. linear adjustment measurement method: from low voltage to high voltage test under rated load
	5.load adjustment measurement method: from 0% to 100% rated load
	6. The power supply is regarded as part of the components of the system and needs to be confirmed by EMC in conjunction with the terminal equipment.
	7. Power supply through CE, FCC, ROHS.
